TOA AT-4030 AS Attenuator
Product Overview

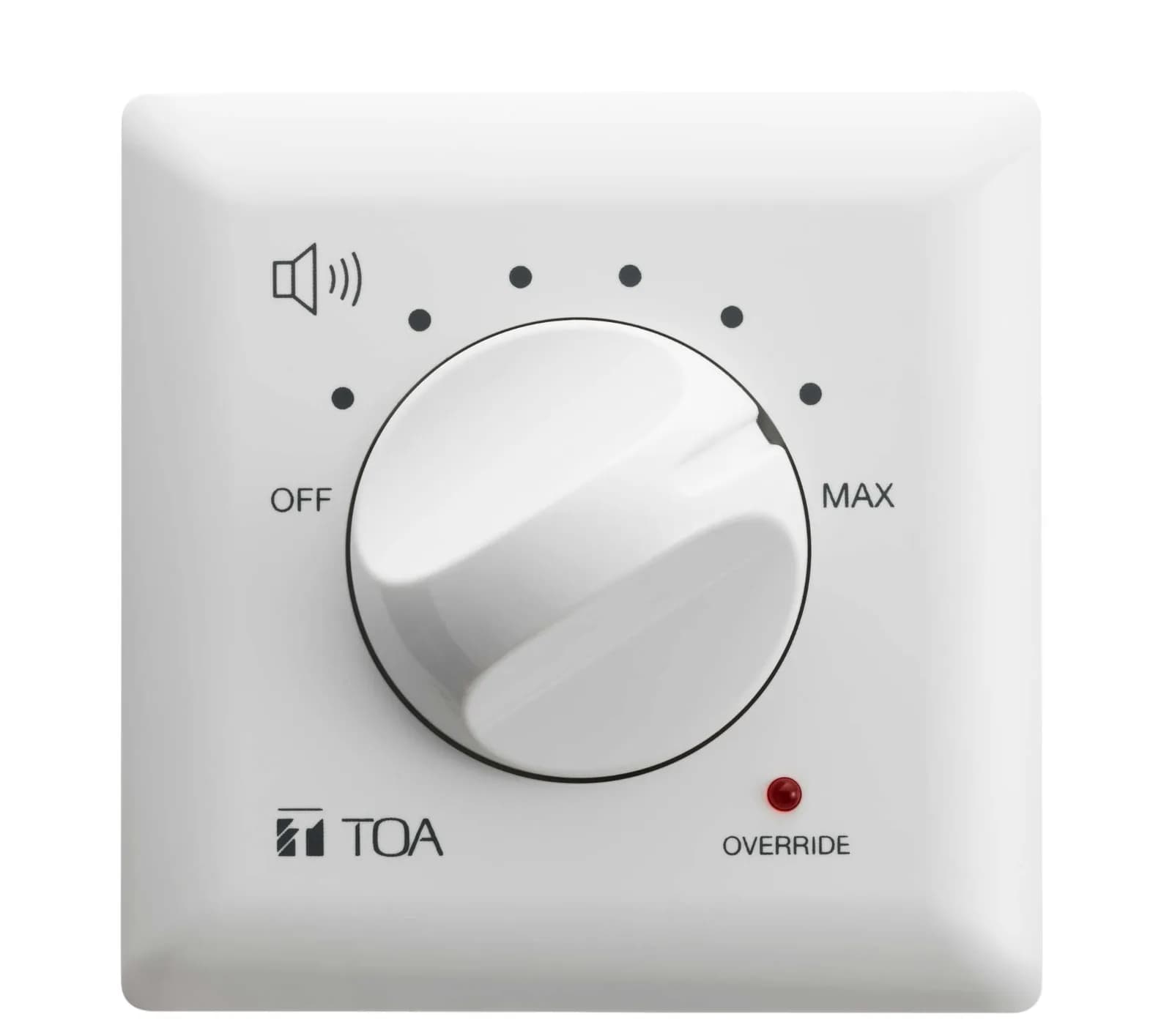

Designed with ergonomics of the human hand in mind, AT-4000 Series Attenuators’ control knob comes in a size that provides comfortable grip and excellent control with every turn. Consisting of 8 steps attenuation, the series is built to provide precision volume control with a difference of 3dB in every step. The built-in overriding relay feature allows emergency paging which is indicated by the LED light when activated.
Specifications
- Input Capacity
- 30 W
- Attenuation
- 8 steps ( 0 dB, -3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, OFF )
- Override Indicator
- Red LED (4-wire connection only)
- Override Voltage
- 24 V, 11 mA DC (4-wire connection only)
- Cable Requirements
- Cable range 22 - 14 AWG
- Terminal
- Screw-type x 5
- Finish
- Knob, Cover Panel: ABS Resin, White (RAL9016 or equivalent) Front Panel (plate): Surface treated steel plate
- Dimensions
- 86 (W) x 86 (H) x 51 (D) mm
- Weight
- 450 g
- Included Accessories
- Black box ( 85.5 (W) x 86 (H) x 51 (D) mm ) x 1, Plate mounting screw x 2
