Product Overview

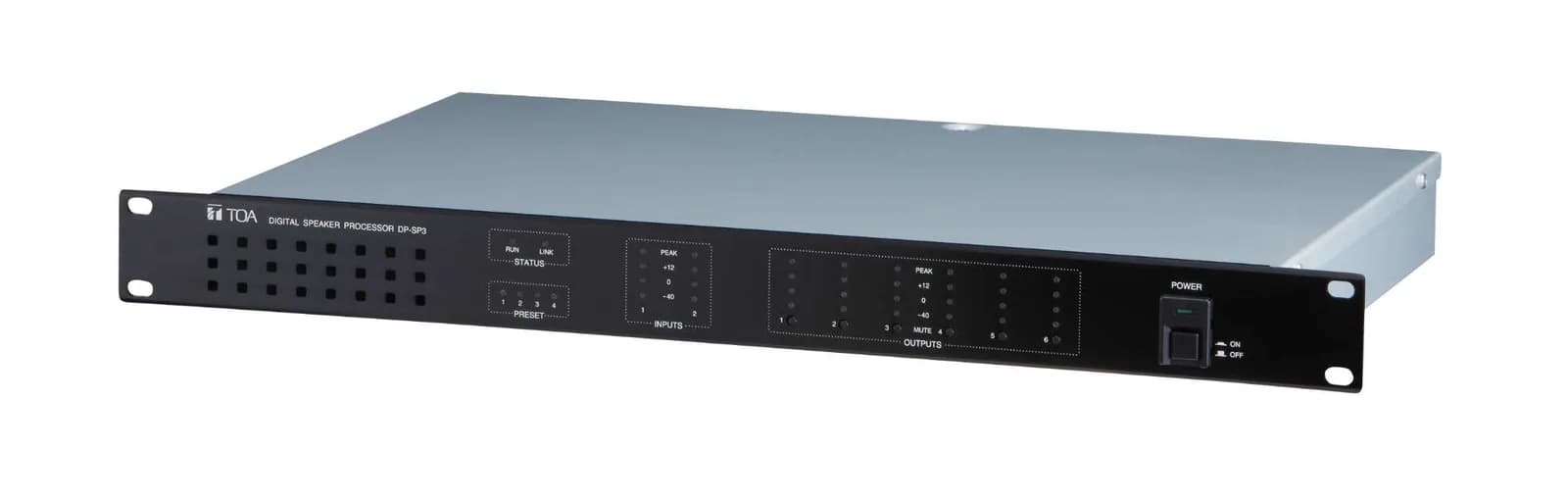

The DP-SP3 is a 1U rack mountable Digital speaker processor having 2 inputs and 6 outputs. It features digital signal processing functions such as Equalizer, Crossover, Matrix, Compressor, and Delay. Other functions include input PAD, analog output attenuator, output MUTE, EQ characteristic library for TOA speakers, and contact input terminals. When connected to a LAN, settings and operations of the DP-SP3 can be performed on a PC with the supplied DP-SP3 PC Software installed. It can be mounted in an EIA component rack (1U size).

Features

  • Digital Speaker Processor for clear, high-quality and realistic sound, with a full sense of presence
  • Essential audio processing tools: Compressor, Parametric Equalizer, Output Delay and Mute
  • 10 filters on each input and 12 filters on each output
  • Any combinations of parametric equalizer and high/low pass, and high/low shelving filters, as well as all-pass, notch filters and CD horn equalizer are possible
  • 2 inputs & 6 outputs, processor can work with a 3-way multi-amp system

Specifications

Power Source
220 - 240 V AC, 50/60 Hz
Power Consumption
25 W
Frequency Response
20 Hz − 20 kHz, ±1 dB
Sampling Frequency
96 kHz
Dynamic Range
110 dB or more
Distortion
0.03 % or less, 1 kHz, +4 dB* input/output, 20 Hz − 20 kHz BPF
Crosstalk
−80 dB or less, 1 kHz
Input
2 channels, +4 dB* (max. +24 dB*), 10 kΩ, electronically-balanced, removable terminal block (3P)
Output
6 channels, +4 dB* (max. +24 dB*), applicable load 600 Ω or more, electronically-balanced, removable terminal block (3P)
A/D Converter
24 bits
D/A Converter
24 bits
Preset Memory
16
Function
Input PAD (−16 dB) control, analog output attenuator (− ∞ to 0 dB in 1 dB steps) control, EQ characteristic library for TOA speakers, input/output level indicator (4-point LED indicator), output MUTE switch x 6
Operating Temperature
0 to 40 ºC (32 to 104 ºF)
Operating Humidity
90 %RH (no condensation)
Finish
Panel: Aluminum, hairline, black, Case: Surface−treated steel plate
Dimensions
482 (w) x 44 (h) x 288.7 (d) mm (18.98” x 1.73” x 11.37”)
Weight
3.1 kg (6.83 lb)
Included Accessories
Power supply cord (2 m (6.56 ft) x 1, Removable terminal plug (3P) x 8, Removable terminal plug (5P) x 1, Rack mounting screw x 4
