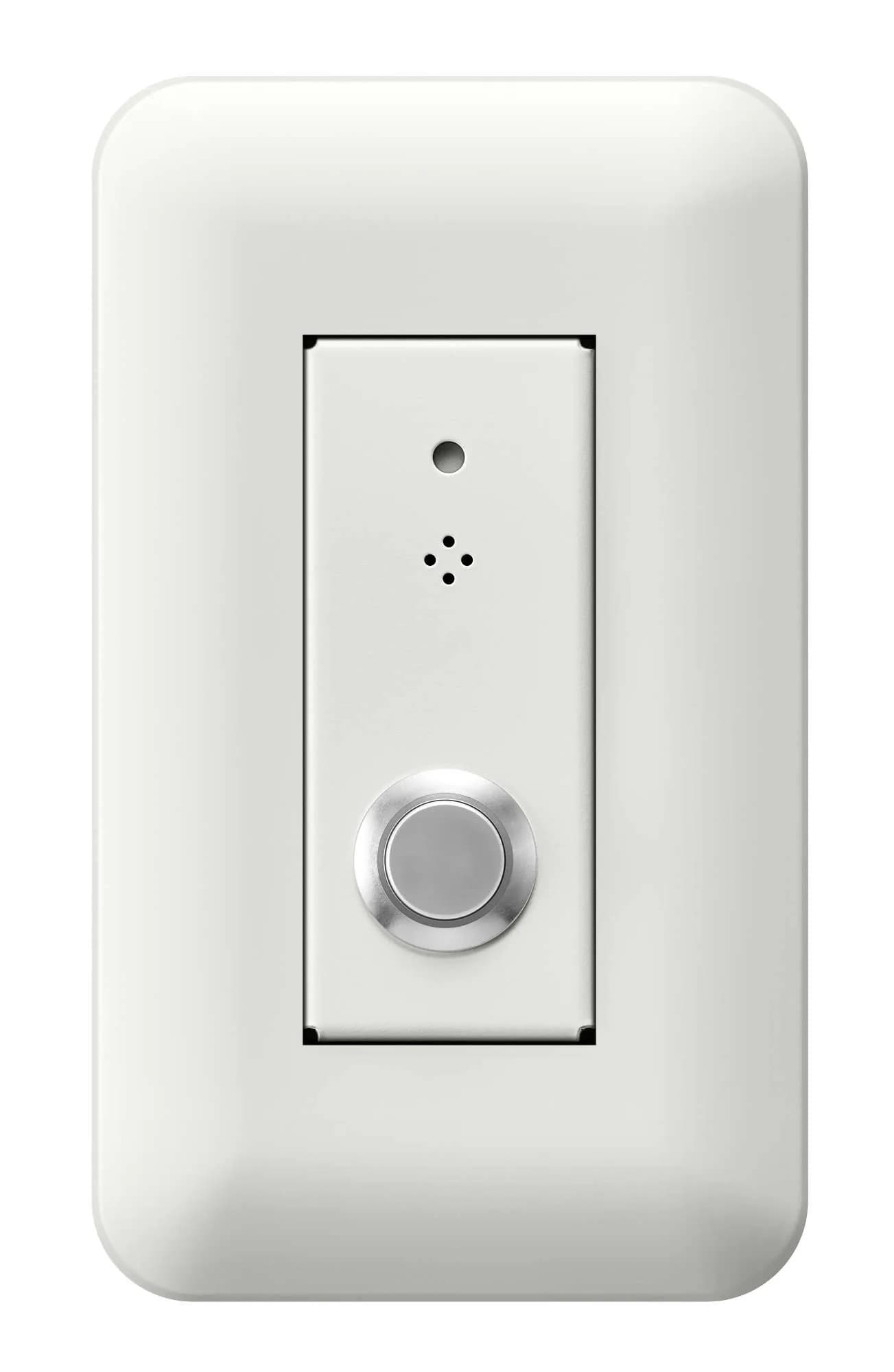

TOA IP-A1MP Microphone Panel
Product Overview
The IP-A1MP is a microphone panel that is equipped with a microphone, an activation switch and a status indicator. It can be installed with a standard electrical box as surface or flush mounting. This panel can be used as a two-way conversation or an audio monitoring microphone when used in conjunction with IP-A1 series devices.
Features
- Audio accessory unit to be used in conjunction with IP-A1 series devices for having two-way
- conversations or audio monitoring
- Omni-directional electret condensor microphone
- Momentary type push switch to initiate a call
- Indicator lights during control input is being triggered
- 1 control input and 1 control output
- 1 electronically-balanced audio output (0dB, 200Ω)
- Surface or flush mounting with a standard electrical box
Specifications
- Phantom Power
- 9 V DC - 26 V DC
- Current Consumption
- 8 mA or less (at 12 V DC)
- Microphone
- Omni-directional electret condenser microphone
- Frequency Response
- 100 Hz - 10 kHz
- Microphone Output
- 0 dB (*1), 200 Ω, (Volume adjustable), electronically-balanced, push-in terminal block
- Control Input
- No-Voltage make contact input, open Voltage: 5 V DC, short-circuit current: 0.2 mA or less, push-in terminal block
- Control Output
- No-Voltage make contact output, withstand Voltage: 30 V DC, control current: 100 mA, push-in terminal block
- Call Button
- Momentary type (Control output circuit is closed while pressed)
- Indicator
- Green (Lit during control input) (*2)
- Cable Requirements
- Microphone output: Two-core shielded cable or Shielded twisted pair cable Control input/output: Twisted pair cable
- Operating Temperature
- -20 °C to +55 °C (-4 °F to 131 °F)
- Operating Humidity
- 90 %RH or less (no condensation)
- Finish
- Front case: Surface-treated steel plate, white (RAL 9016 equivalent), semi-gloss, paint Rear case, bracket: Surface-treated steel plate, black zinc plating Plate: ABS resin, white (RAL 9016 equivalent), gloss
- Dimensions
- 44.6 (W) x 107 (H) x 29 (D) mm (1.76" x 4.21" x 1.14") (excluding projection)
- Weight
- 170 g (0.37 lb)
- Included Accessories
- Plate x 1, Plate mounting screw (M3.5 x 5.5, preinstalled on the plate) x 2, Box mounting screw (M4 x 35) x 2
- Compatible Box
- Flush-Mount Box: YC-801 Wall-Mount Box: YC-802
