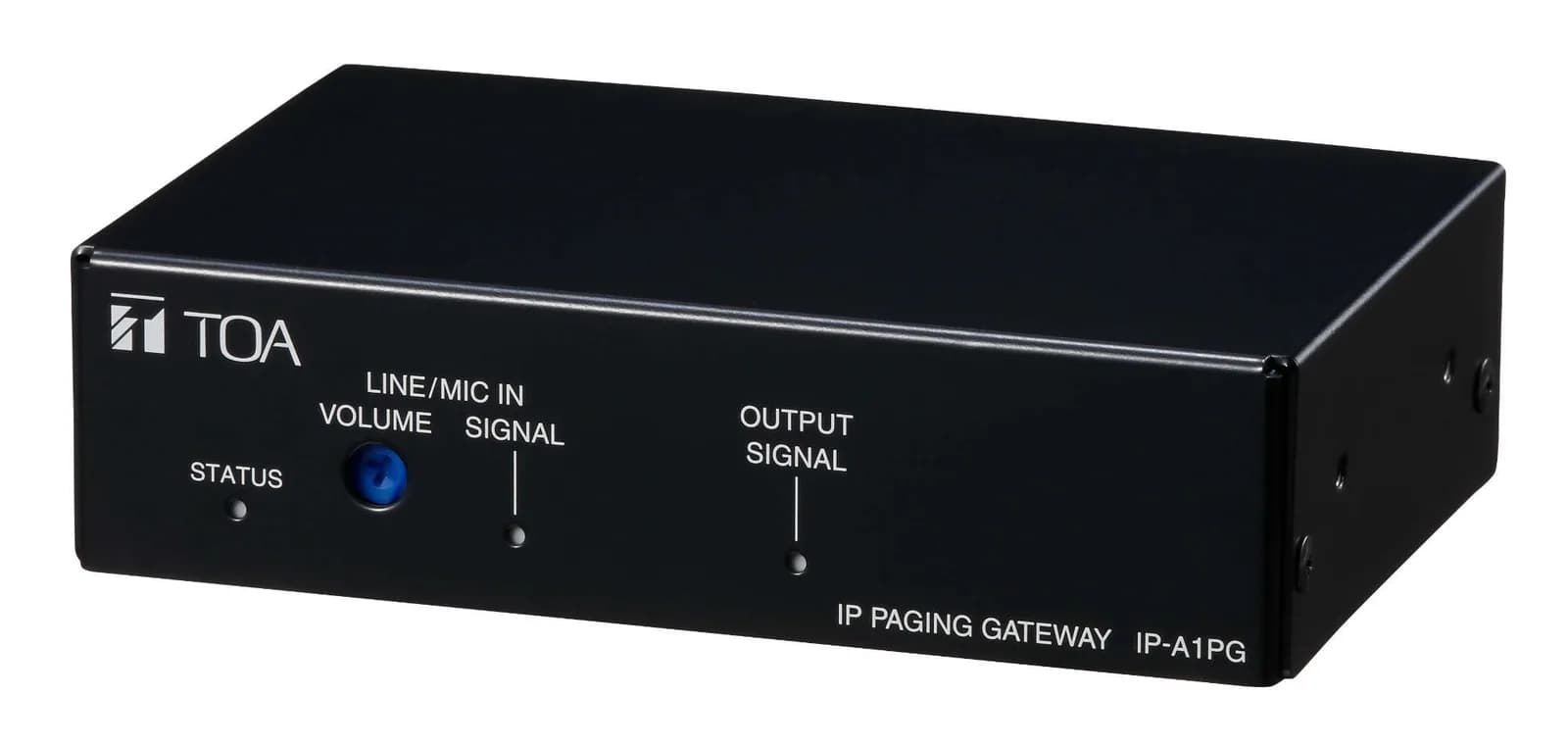

TOA IP-A1PG IP Paging Gateway
Product Overview
The IP-A1PG is a PoE-powered Gateway Unit that integrates multiple IP Audio devices by converting audio from Video Management Systems using ONVIF or SIP voice from SIP phone systems into multicast audio streaming. It can also transmit built-in sound source or input audio as multicast audio streaming. Moreover, the event broadcasting triggered by control input, scheduler or remote API (HTTP/HTTPS) as well as the command set that sends multiple HTTP/HTTPS commands simultaneously are also available.
Features
- Convert SIP audio, ONVIF, internal audio files or local audio source into Multicast streaming
- GUI calendar scheduler function (up to 2,000 settings)
- System mute function to mute all broadcasts made by every single IP-A1 series devices within the same network
- 1 local audio input (LINE/MIC selectable, phantom power On/Off)
- 4 control inputs and 1 control output
- HTTP/HTTPS commands (receive/send)
- Audio file storage (20 files, total 80MB, WAV/MP3)
- PoE powered
Specifications
- Power Source
- PoE(IEEE802.3af Class 3)
- Power Consumption
- 2.5 W
- Audio Codec
- Opus, PCMU (G.711u), PCMA (G.711a), G.722
- Audio Delay Time
- Min. 100 ms(*1)
- Audio Transmission Method
- Multicast Audio Streaming
- Network I/F
- 100BASE-TX, Auto MDI/MDI-X, RJ45 connector
- Network Protocol
- IP, TCP, UDP, TLS, HTTP, HTTPS, RTP, SRTP, RTSP, RTCP, SRTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261), SIPS
- Audio Input
- 1 channel, electronically-balanced, 10 kΩ LINE/MIC selectable (Rated input: LINE: 0 dB (*2), MIC: -60 dB (*2) PAD function (-20 dB (*2), Phantom power ON/OFF (12 V DC), volume adjustable removable terminal block (6 pins)
- Control Input
- 4 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins)
- Control Output
- 1 channel, open collector output, withstand voltage: 30 V DC, control current: 150 mA or less, removable terminal block (6 pins)
- Mute Control Input
- 1 channel, 24 V DC cut-off signal, control current 5 mA or less, non-polar, removable terminal block (2 pins)
- Monitor Output
- 1 channel, unbalanced, 600 Ω or less Rated output: 0 dB (*2), RCA pin jack
- Indicator
- STATUS (green/blue/orange/red), LINE/MIC IN (green/red), OUTPUT (green),LINK/ACT (green)
- Clock Accuracy
- ±13 seconds per month
- Time Adjustment
- Manual time setting, Time adjustment by NTP server
- Power Outage Protection Period
- 24 hours (RTC time retention, at 40 °C (104 °F)
- Operating Temperature
- -30 °C to +55 °C (-22 °F to 131 °F)
- Operating Humidity
- 90 %RH or less (no condensation)
- Finish
- Front case: Surface-treated steel plate, black, paint Rear chassis: Surface-treated steel plate
- Dimensions
- 126 (W) x 33 (H) x 80 (D) mm (4.96" x 1.3" x 3.15") (excluding projection)
- Weight
- 390 g (0.86 lb)
- Included Accessories
- Removable terminal plug (6 pins, preinstalled on the unit) x 2, Removable terminal plug (2 pins, preinstalled on the unit) x 1, Rubber feet x 4, Mounting screw (M3 x 6) x 4
