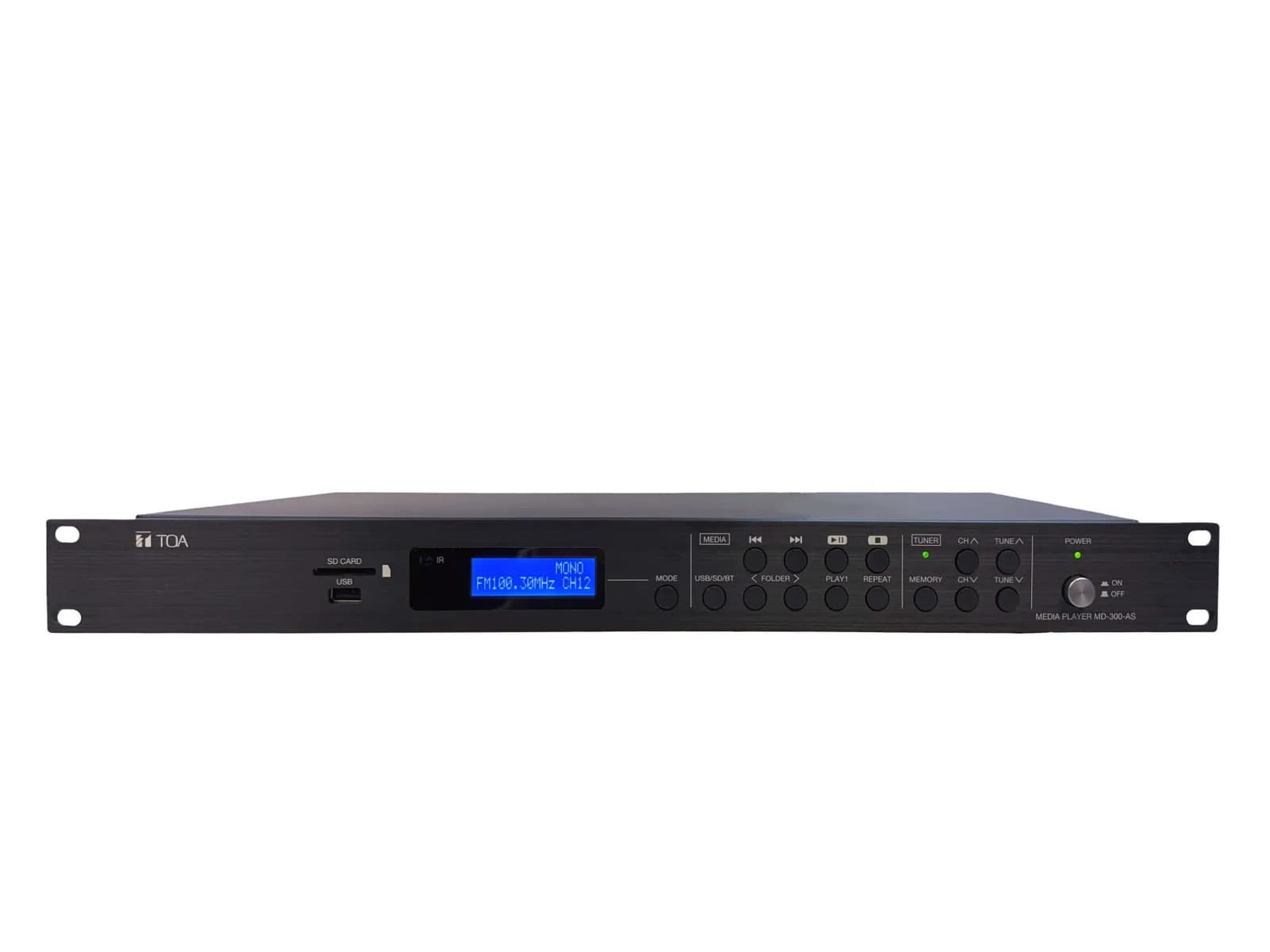

TOA MD-300-AS Media Player
Product Overview
TOA's MD-300-AS is a media player and digital processing FM radio tuner. The unit features USB and SD card slot for seamless MP3 Playback, along with Bluetooth functionality for easy audio streaming. The radio has the capability to store up to 30 channels. The MD-300-AS can be mounted on a EIA equipment rack.
Specifications
- Power Source
- 24 V DC M3 screw terminal or DC socket connector
- Current Consumption
- 350 mA
- Receiving Frequency
- 87.5 - 108 MHz (50 kHz step)
- Frequency Response
- 20 - 20 kHz, ±3 dB
- Audio Input
- USB port for memory stick (up to 32 GB, Type file: MP3 file) SD card slot (up to 32 GB, Type file: MP3 file) FM antenna terminals Bluetooth
- Audio Output
- RCA audio output L and R channels for PRIORITY RCA audio output L and R channels for TUNER RCA audio output L and R channels for USB/SD/BLUETOOTH
- Control Input
- Play track 1 - 3, Play All, STop: No-voltage make contact input, open voltage: 24 V DC, Short circuit current: Under 5 mA, Removable terminal block
- Channels of Memory
- 30 Channels in total for FM broadcasts
- Indicator
- LCD Display Light Blue 3 LED Indicator Light Green
- Operating Temperature
- 0 °C to +40 °C
- Operating Humidity
- Under 90 % RH (no condenstation)
- Finish
- Front Panel: Aluminum, Black, Anodize Case: Steel Plate, Black, Painting
- Dimensions
- 482 (W) x 44 (H) x 229.5 (D) mm (18.97" x 1.73" x 9.03")
- Weight
- 2.1 kg
- Included Accessories
- Remote Control x 1, Antenna FM Radio x 1, Removable terminal plug (2 pins) x 1, Removable terminal plug (3 pins) x 2
- Optional Accessories
- AC/DC Adapter: AD-246
