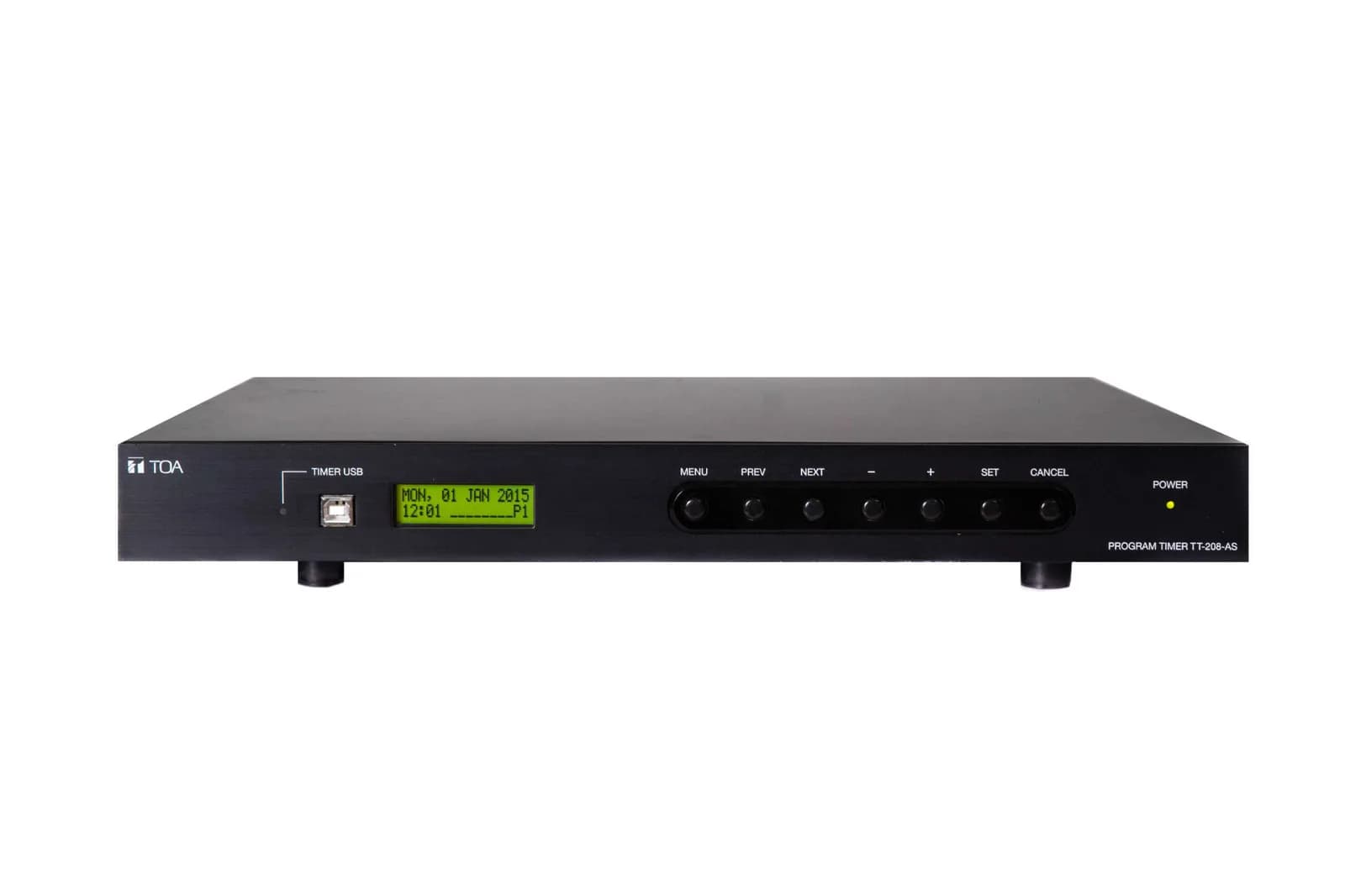

TOA TT-208-AS Program Timer
Product Overview
The TT-208-AS is a weekly program timer that comes with 8 channels out contact switch and 1 output contact with Westminster chime audio. Can be use with an optional rack-mount bracket to mount on an EIA standard equipment rack, occupying 1 U size).
Features
- Built-in Westminster chime
- Weekly timer with 4 programs
- 8 channels and control contacts
- 80 schedules per channel, programmable by PC or LCD menu
- Internal memory can be retained for approx. 100 hours by the internal battery backup in the event of power outage
Specifications
- Power Source
- 220 - 230 V AC, 50/60 Hz
- Power Consumption
- 10W
- Frequency Response
- 20Hz – 20kHz
- Audio Output
- Westminster Chime Level : 0 dB, 600 Ω
- Control Output
- 8 Channels contact switch (NO) 1 output contact switch (NO)
- Synchronize Time
- Send out pulse per 1 minute
- Display
- Power indicator: Green, LCD Character: Back Light Green, USB Indicator PC Link: Orange
- Operating Temperature
- 0°C to +40°C
- Operating Humidity
- Under 90% RH (no condensation)
- Finish
- Front panel: Aluminum, Black, Alumite Case: SECC plate, black, Paint
- Dimensions
- 420 (W) x 59 (H) x 342 (D) mm ( 16.54” x 2.32” x 13.46")
- Weight
- 3.2 kg
- Included Accessories
- Power Cable ( YA-301 ) x1, removable terminal plug ( 2 pins ) x12, CD Rom ( Software & Manual ) x1
- Optional Accessories
- Rack mounting bracket:MB-15B
