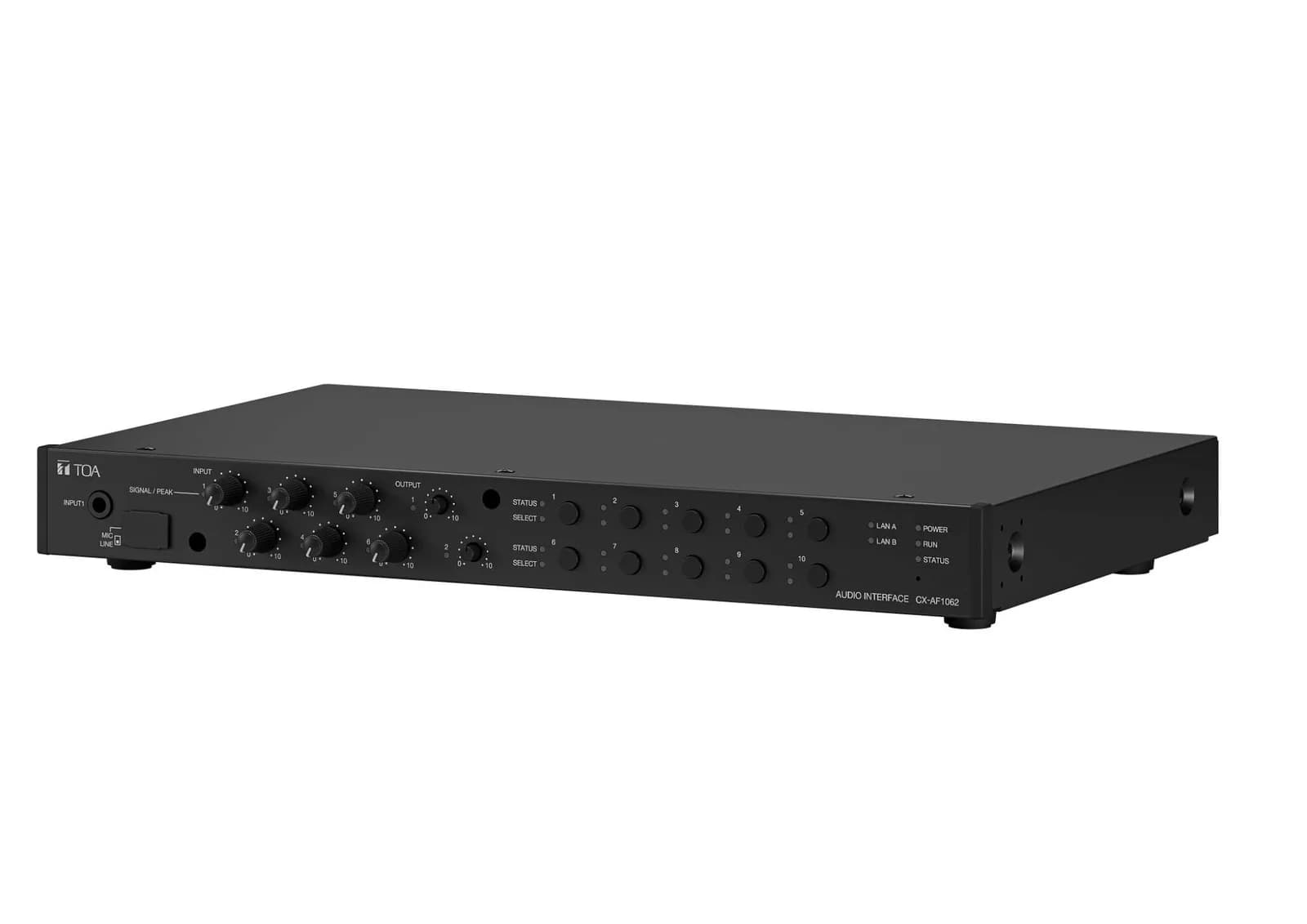

TOA CX-AF1062 Audio Interface 6in2out
Product Overview
The CX-AF1062 is an Audio interface designed for the CX-1000 series IP communication system that features decentralized distribution configuration. By simply connecting to a network (LAN or WAN), it is possible to make audio announcements from the microphone or audio source devices connected to this unit to the intercom stations or amplifier units. By registering audio files in the unit's built-in memory, Chime broadcast and EV broadcast can be performed. It is equipped with 6 analog audio inputs and 2 analog audio outputs. You can adjust the volume for each audio input/output channel using the front panel-mounted volume knob or by software. In addition, the sound quality for each audio input/output channel can also be adjusted by software. Announcements and various functions can be started or stopped using the front panel-mounted direct keys.
Features
- Supports 6 balanced audio inputs and 2 balanced audio outputs
- Comprehensive volume control with 6 inputs and 2 outputs
- Signal processing with Gain, EQ, Comp, AGC, Trim, Gate (VOX)
- Network support with dual RJ45 connectors and key protocols
- Unicast and multicast audio packet transmission
- 10 direct keys and multiple LED indicators
- 10 control inputs and 10 control outputs for external device integration
- Desktop, rack, or wall mountable for flexible installation
Specifications
- Power Source
- 24 V DC (operating range: 21.6 - 26.4 V DC) Removable terminal block (2 pins) or use of the optional AC adapter
- Current Consumption
- 340 mA
- Power Consumption
- 8 W
- Audio Input
- 3 channels, -60 dB (*1)/0 dB (*1) selectable, 600 Ω, transformer-balanced 3 channels, 0 dB (*1), 10 kΩ, electronically-balanced Removable terminal block (9 pins x 2) Only Input 1 is used in common with the front-mounted Ø6.3 mm phone jack.
- Audio Output
- 2 channels, 0 dB (*1), 10 kΩ, electronically-balanced, removable terminal block (3 pins x 2)
- Frequency Response
- 200 Hz - 16 kHz
- Signal to Noise Ratio
- 60 dB or more
- Distortion
- 1% or less
- Volume Control
- Audio input volume control x 6, Audio output volume control x 2
- Signal Processing
- Input channel: Gain, EQ x 2, Comp, AGC, Trim, Gate (for VOX function) Output channel: Gain, EQ x 7
- Network Section
- Network I/F: 100BASE-TX Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, IGMP, NTP, FTP, RSTP Audio packet transmission system: Unicast, Multicast Number of paging destinations: Unicast (max. 16), Multicast (max. 2999) Connector: RJ45 connector x 2 Network cable: UTP (Cat5 or greater)
- Audio Transmission
- Sampling frequency: 48 kHz, 16 kHz (controllable on the software) Audio codec: PCM, G.722 Quantization bit depth: 16-bit Voice packet loss recovery: Silence insertion
- User Control
- Direct key x 10, Reset key x 1, Setting switch (input level setting (MIC/LINE selectable) x 1
- Indicators
- LED indicators: LAN (green) x 2, POWER (green) x 1, RUN (green) x 1, STATUS (yellow, red, green) x 1, INPUT (red, green) x 6, OUTPUT (red, green) x 2 Direct keys: SELECT (green) x 10, STATUS (yellow, red, green) x 10
- Control Input
- 10 channels, no-voltage make contact input, open voltage: 24 V DC, short-circuit current: 5 mA or less, removable terminal block (12 pins x 2)
- Control Output
- 4 channels, relay output, maximum contact capacity : 30 V DC/1.0 A, removable terminal block (6 pins x 2) 6 channels, open collector output, maximum contact capacity : 30 V DC/100 mA, removable terminal block (6 pins x 2)
- Installation Method
- Desktop, rack, or wall mounting (Rack or wall mounting needs optional brackets.)
- Operating Temperature
- 0 °C to +40 °C (32 °F to 104 °F)
- Operating Humidity
- 90 %RH (no condensation)
- Finish
- Panel, Case: Pre-coated steel plate, black, 30% gloss Front cover: ABS resin, gray smoke
- Dimensions
- 420 (W) x 44.3 (H) x 284.5 (D) mm (16.54" x 1.74" x 11.2")
- Weight
- 3.1 kg (6.83 lb)
- Included Accessories
- Removable terminal plug 2 pins) x 1, Removable terminal plug (3 pins) x 2, Removable terminal plug (6 pins) x 4, Removable terminal plug (9 pins) x 2, Removable terminal plug (12 pins) x 2, Plastic foot x 4, Screw for fitting plastic foot x 4, Removable terminal plug 2 pins) x1
- Optional Accessories
- AC adaptor: AD-246 Wall mounting bracket: YC-850 Rack mounting bracket: MB-15B
