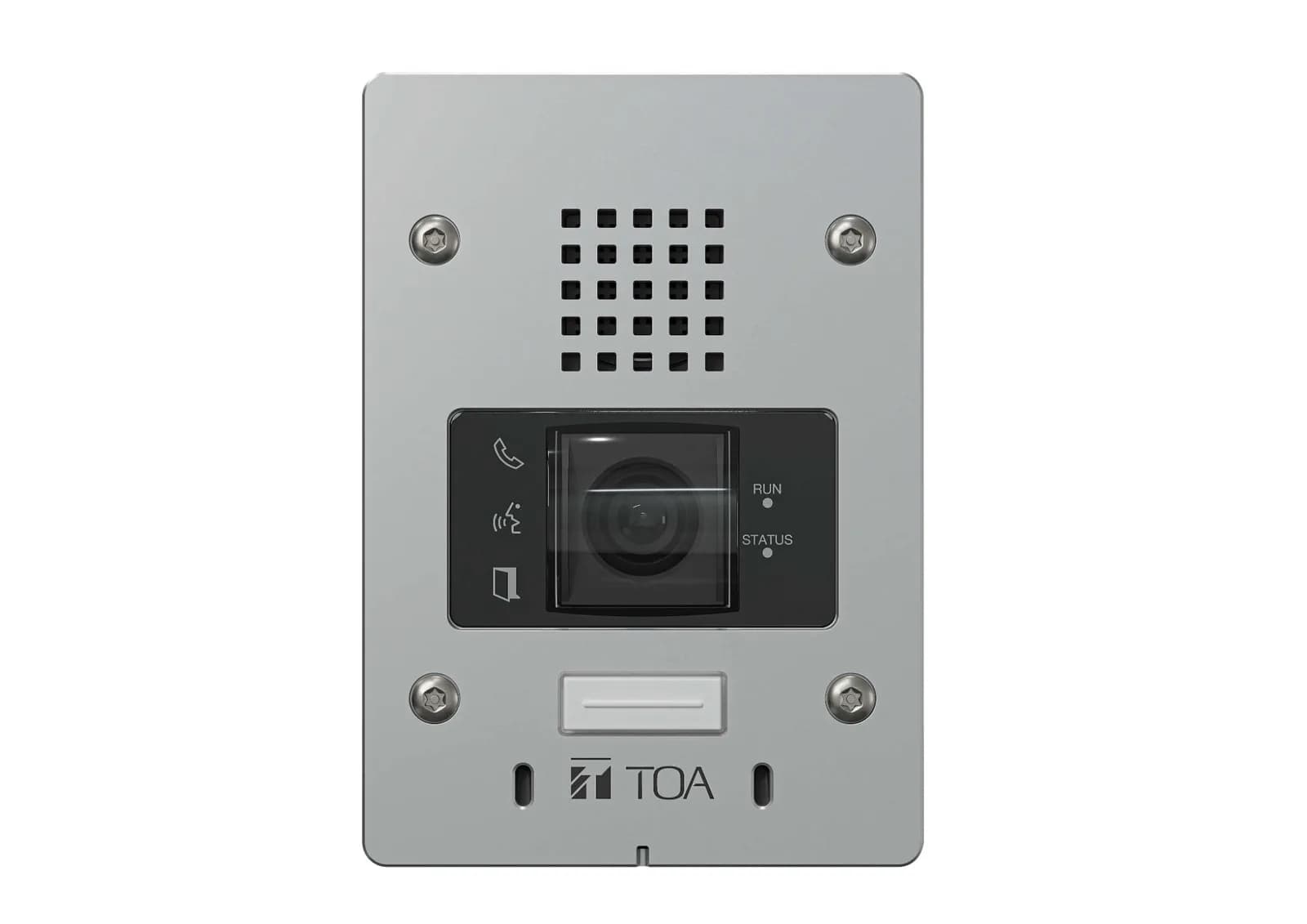

TOA CX-CL1750 Video Call Station
Product Overview
The CX-CL1750 is a Video call station designed for the CX-1000 series IP communication system. By connecting this station to a network (LAN or WAN), hands-free voice conversations can be made using this station or other intercom stations. It is also possible to receive broadcasts made by other CX stations, audio interfaces, and amplifier units. It is equipped with a camera that enables video conversations with the CX-1000 series Video operation station. Power can be supplied from a PoE-compatible switching hub (in this case, an optional AC adapter is not required). The CX-CL1750 supports the SIP protocol, which allows conversations with general-purpose SIP phones via the System manager.
Features
- Full-duplex hands-free communication with echo canceller
- Built-in camera (max. 1280x720 pixels) for video communication
- Dual MEMS mics and array processing for clear pickup
- Supports key audio/video codecs like G.722 & H.264
- IP65/IK08 compliant for outdoor durability
- Compatible with SIP, HTTP, and other protocols
- 4 control inputs and 4 outputs for external device integration
- Flush or wall mounting for flexible installation
- PoE (IEEE802.3af compliant) or 12 V DC power
Specifications
- Power Source
- PoE (IEEE802.3af compliant) or 12 V DC (use of the optional AC adapter)
- Current Consumption
- PoE: 200 mA, 12 V DC (AC adaptor) : 610 mA
- Power Consumption
- 8 W
- Speech Method
- Hands-free: Full-duplex (echo canceler + voice switch)
- Frequency Response
- Conversation: 300 Hz - 7 kHz Broadcast: 300 Hz - 16 kHz
- Hands-free
- Speaker: Dynamic type speaker, maximum output 2.0 W Microphone: Omni-directional digital MEMS microphone x 2
- External Speaker
- Maximum output 2.0 W, 8 Ω, push-in terminal (2 pins)
- Signal Processing
- Input channel: Gain, EQ x 2, Comp, AGC, noise canceler, echo canceler, voice switch, microphone array, speech enhancement Output channel: Gain, EQ x 7, ANC
- Network Section
- Network I/F: 100Base-TX Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, IGMP, NTP, SIP, FTP, RSTP Audio packet transmission method: Unicast, Multicast Number of broadcasting destinations: Unicast (max. 16), Multicast (max. 2999) Connector: RJ45 connector x 2, LAN A (PoE compatible), LAN B (PoE incompatible) Network cable: UTP (Cat5 or greater)
- Audio Transmission
- Sampling frequency: 48 kHz, 16 kHz, 8 kHz (controllable on the software) Audio codec: PCM, G.722, G.711 μ-Law/A-Law Quantization bit depth: 16-bit Voice packet loss recovery: Silence insertion
- Video Transmission
- Video codec: H.264, MJPEG Resolution: HD 1280 x 720 (max.) Frame rate: 20 fps ( max.)
- User Control
- Direct key x 1
- Indicators
- LED indicators: RUN (green) x 1, STATUS ( yellow, red, green) x 1, Calling indicator (yellow) x 1, Conversation indicator (green) X 1, Unlock indicator ( green) x 1
- Camera
- Image device: 1/2.9 type CMOS Number of effective pixels: 1280 x 720 (max.) Angle of view: horizontal 120°, vertical 69°
- Control Input
- 4 channels, no-voltage make contact input, open voltage: 12 V DC, short-circuit current: 5 mA or less, push-in terminal (5 pins)
- Control Output
- 1 channel, relay contact output, withstand voltage: 30 V DC, maximum control current: 1 A, push-in terminal (2 pins) 4 channels, open collector output, maximum contact capacity : 30 V DC/100 mA, push-in terminal (5 pins)
- Installation Method
- Flush-mounting or wall-mounting
- Impact Resistance
- IK08
- Dust/Water Protection
- IP65 (Note that front cover edges must be sealed at installation.)
- Operating Temperature
- -40 °C to +60 °C (-40 °F to 140 °F)
- Operating Humidity
- 90 %RH (no condensation)
- Finish
- Case: Die-cast aluminum, silver, mat finish, paint Panel: PC resin
- Dimensions
- 115 (W) x 162 (H) x 75.5 (D) mm (4.53" X 6.38" X 2.97")
- Weight
- 770 g (1.7 lb)
- Included Accessories
- Waterproof washer x 4, Tamper-proof screw x 4, Protection seal x 2
- Optional Accessories
- AC adapter: AD-1210P, AD-1215P
- Compatible Box
- For flush mount: 3-gang electrical box or Back Box YC-150 (option) For wall mount: Wall-mount Box YS-13A (option)
