TOA CX-CC1016 Control I/O Unit
Product Overview

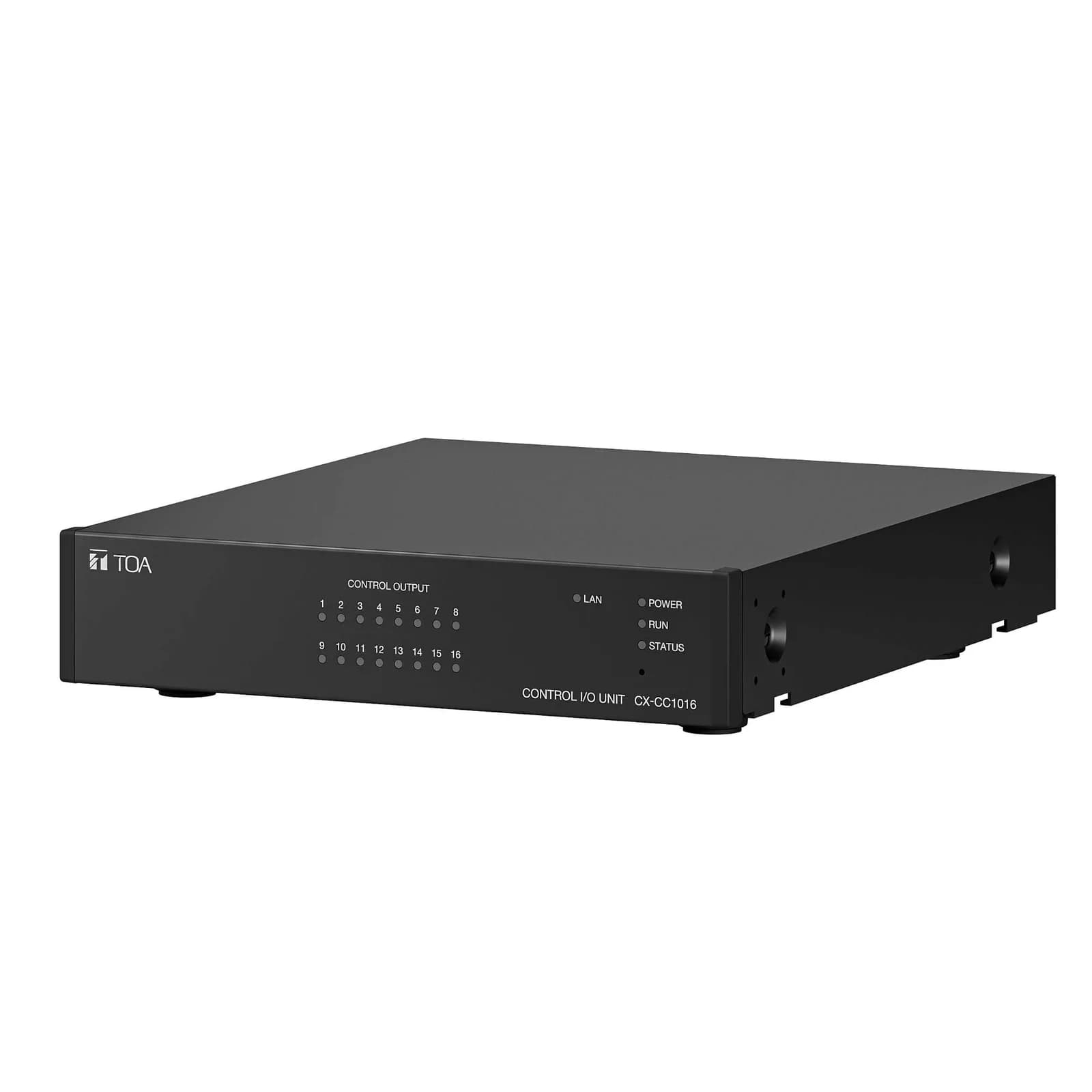

The CX-CC1016 is a Control input/output unit having 16 control inputs and 16 control outputs designed for the CX-1000 series IP Communication system. By connecting this unit to a network (LAN or WAN), you can control external devices connected to the units in the configured CX-1000 system, enable various types of calls, activate broadcasts, and set other functions as needed. The output status can be confirmed with the front panel-mounted indicators.
Features
- 16-channel relay inputs and outputs control unit for external device integration
- Supports no-voltage dry contact inputs with 24 V DC open voltage
- Maximum relay contact capacity of 30 V DC/1.0 A for outputs
- Single LAN port with 100Base-TX network interface
- Reset key for easy system reboot
- Compact design for desktop, rack, or wall mounting
- 24 V DC power input with removable terminal block
Specifications
- Power Source
- 24 V DC (operating range: 21.6 - 26.4 V DC) Removable terminal block (2 pins) or use of the optional AC adapter
- Current Consumption
- 230 mA
- Power Consumption
- 5.5 W
- Network Section
- Network I/F: 100Base-TX Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, FTP Connector: RJ45 connector x 1 Network cable: UTP (Cat5 or greater)
- User Control
- Reset key x 1
- Indicators
- LED indicators: LAN (green) x1, POWER (green) x1, RUN (green) x1, STATUS (yellow, red, green) x1 Control output indicators: CONTROL OUTPUT (green) x16
- Control Input
- 16 channels, no-voltage make contact input, open voltage: 24 V DC, short-circuit current: 10 mA or less, removable terminal block (10 pins x2)
- Control Output
- 16 channels, relay contact output, maximum contact capacity: 30 V DC/1.0 A, removable terminal block (16 pins x2)
- Installation Method
- Desktop, rack, or wall mounting (Rack or wall mounting needs optional brackets.)
- Operating Temperature
- 0 °C to +40 °C (32 °F to 104 °F)
- Operating Humidity
- 90 %RH (no condensation)
- Finish
- Panel, Case: Pre-coated steel plate, black, 30 % gloss
- Dimensions
- 210 (W) x44.3 (H) x266.7 (D) mm (8.27" x1.74" x10.5")
- Weight
- 1.5 kg (3.31 lb)
- Included Accessories
- Removable terminal plug (2 pins) x 1, Removable terminal plug (10 pins) x 2, Removable terminal plug (16 pins) x 2, Plastic foot x4, Screw for fitting plastic foot x 4
- Optional Accessories
- AC adaptor: AD-246 Wall mounting bracket: YC-850 Half width blank panel: MB-15B-BK (for rack mounting one CX-CC1016 unit) Rack joint bracket: MB-15B-J (for rack mounting two CX-CC1016 units)
