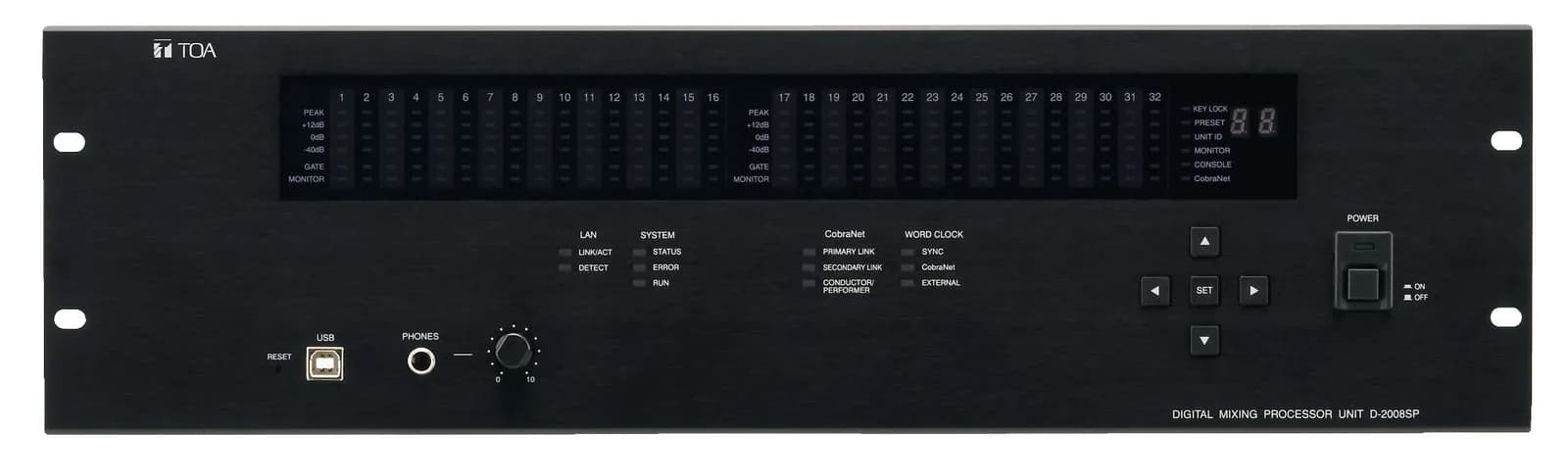

TOA D-2008SP Digital Mixing Processor Unit
Product Overview
The D-2008SP Digital Mixing Processor Unit is designed to have up to 32 audio inputs and outputs in total, and to be mounted in an EIA standard equipment rack (3U size). A built-in powerful signal processing function permits the unit to be used as both a mixer and a signal processor. Its audio input/output and control ports can accept optional plug-in modules, making the unit have a maximum of 32 inputs or 32 outputs and up to 2 control modules. Using the following optional modules enables the unit to perform their functions: Two D-983s for providing a maximum of 48 contact inputs and 32 contact outputs, D-984VC for VCA control, and D-2000CB for audio data transfer between multiple D-2008SP units. Each function is set by the dedicated setting software on a PC. Setting contents can be stored in the unit's internal memory as preset memory, which can be recalled by the D-2008SP without using a PC. The D-2012C, when connected, remotely controls the D-2008SP's basic operations such as volume control.
Features
- 32 preset memories for user convenience
- Up to 32 different routing and parameter configurations can be stored for frequent changes in staging, seating and speaker arrangements
- Intuitive GUI
- Mixing console option offers easy user operation
- User-friendly VCA control
Specifications
- Power Source
- 220 – 240 V AC,50/60 Hz
- Power Consumption
- 76 W
- Frequency Response
- 20 Hz – 20 kHz, ±1 dB (±4 dB* input)
- Sampling Frequency
- 48 kHz
- Input/Output
- Input: Max. 32 channels, modular construction (modules optional) Output: Max. 32 channels, modular construction (modules optional) Monitor bus: 1 stereo input, 1 stereo output Connector: RJ45 connector Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable (data lines: 2 pairs) Maximum cable distance: 100 m or 109.36 yd (between D-2008SP and D-2012C) Headphones: 1 stereo
- Preset Memory
- 32
- Auxiliary Function
- Key lock function
- LAN
- Network I/F: 1 10BASE-T/100BASE-TX circuit (selectable by automatic recognition), RJ45 connector for maintenance use, connection via a switching hub Network Protocol: TCP/IP Connection Cable: Category 5 or higher shielded twisted pair cable for LAN (CAT5-STP or better) Maximum Cable Distance: 100 m or 109.36 yd (between this unit and a switching hub or PC)
- Control
- RS-232C: D-sub connector (9 pins), for external control Module: Remote control module slot x 2
- Operating Temperature
- 5 °C to 40 °C (41 ºF to 104 ºF)
- Finish
- Panel: Aluminum, hair-line finish, black Case: Surface-treated steel plate
- Dimensions
- 482 (W) x 132.6 (H) x 343.4 (D) mm (18.98" x 5.22" x 13.52")
- Weight
- 6.3 kg (13.89 lb)
- Included Accessories
- Power cord (2m (6.5 ft) x 1, Rack mounting screw x 4, Module mounting screw (spare) x 4, Blank panel (preinstalled on the module slot) x 8
- Optional Accessories
- Mic/Line input module: D-2000AD1, D-921E, D-921F, D-922E, D-922F Stereo select input module: D-936R Digital input module: D-923AE Line output module: D-971E, D-971M, D-971R, D-2000DA1 Digital output module: D-972AE CobraNet interface module: D-2000CB Remote control module: D-981, D-983, VCA control module: D-984VC
