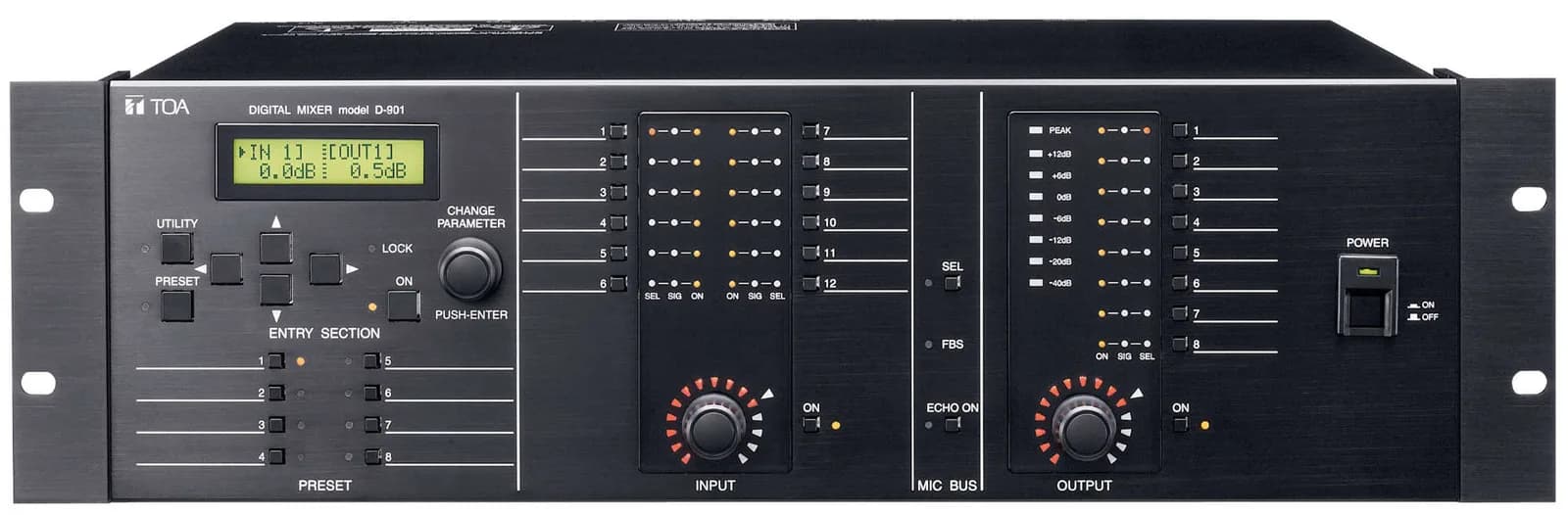

TOA D-901 Digital Mixer
Product Overview
The D-901 is a 19-type rack-mounted (3U high) digital mixer configured with 12 inputs, 8 buses, and 8 outputs. It features signal processing functions necessary for sound systems such as feedback suppression and auto-mixing. Modular construction permits flexible configuration of inputs and outputs, from 2-IN/4-OUT to 12-IN/8-OUT systems.All functional parameters can be set at the unit. Settings can be stored in the unit's internal memory as "preset memory" and can be recalled using the front panel-mounted operation keys.
Features
- 12-input, 8-bus, 8-output channel configuration (12 x 8 matrix) with easy operation
- Can be expanded as application requires
- Convenient front panel controls and display make it easy to perform all functions and confirm
- parameter settings without requiring a PC
- Ability to store up to 16 sound parameter setting configurations in memory for instant recall when required
Specifications
- Power Source
- 230 V AC,50/60 Hz
- Power Consumption
- 27 W
- Frequency Response
- 20 Hz - 20 kHz, ±1 dB (±4 dB* input)
- Input
- Max. 12 channels, modular construction (modules optional)
- Output
- Max. 8 channels, modular construction (modules optional)
- Preset Memory
- 16
- Auxiliary Function
- System Locking function
- Control
- RS-232C, D-sub connector (9 pins), Remote control module (option)
- Front Panel Section
- Preset memory recall key: 8 LCD screen, screen shift key (up/down/left/right), setting knob Input level indicator: Dual color LED Output level indicator: Dual color LED Channel selector key: 12 (input channel selection), 8 (output channel selection) Channel volume control: 1 (input channel selection), 1 (output channel selection)
- Rear Panel
- Input module slot: 6 (input/output module slot: 2) Output module slot: 2 Remote control module slot: 1
- Operating Temperature
- +5 °C to +40 °C (41 °F to 104 °F)
- Finish
- Panel: Aluminum, hair-line finish, black Others: Pre-coated steel plate, black, 30% gloss
- Dimensions
- 482.6 (W) x 132.6 (H) x 320 (D) mm (19" x 5.22" x 13.51") (excluding projection)
- Weight
- 6.9 kg (15.21 lb)
- Included Accessories
- Power cord (2 m (6.56 ft) x 1, Rack mounting screw x 4, Rack mounting bracket (preinstalled on the unit) x 2, Module mounting screw (spare) x 4, Blank panel (preinstalled on the module slot) x 9
