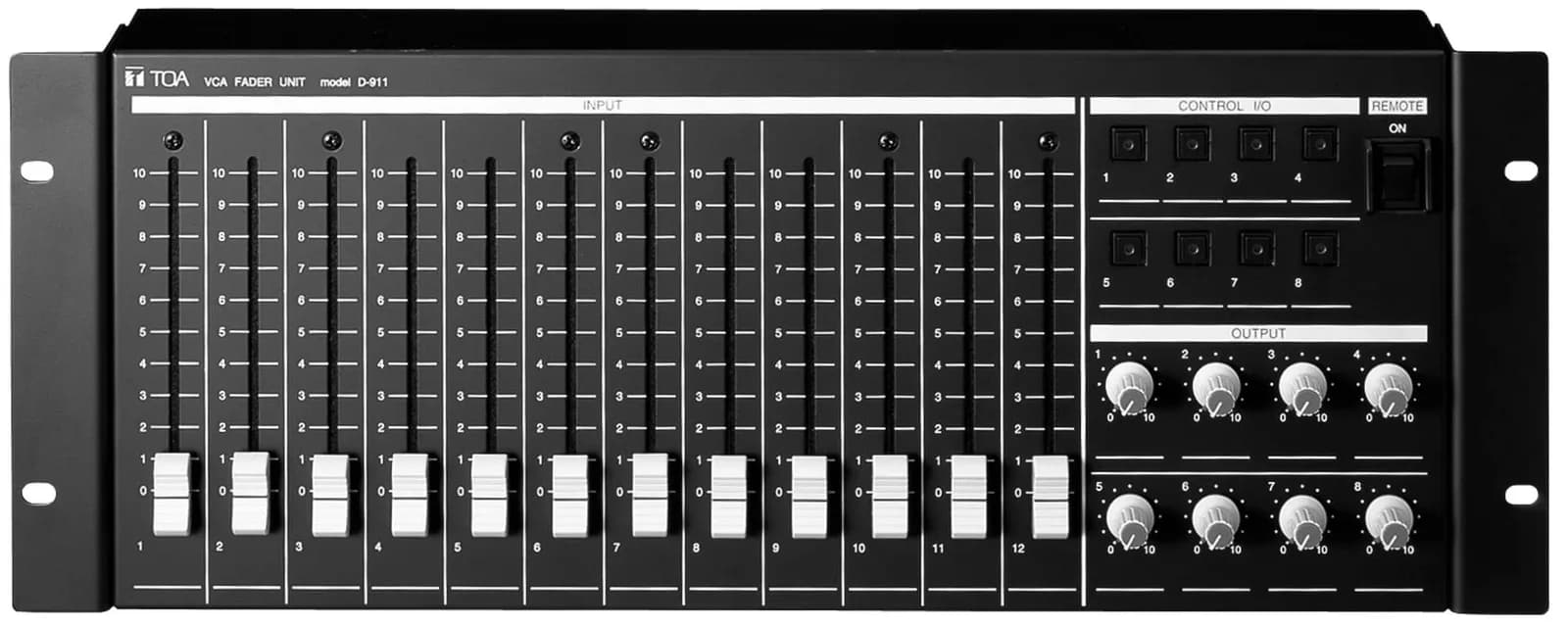

TOA D-911 VCA Fader Unit
Product Overview
The D-911 is a dedicated VCA fader unit designed for use with the D-901 Digital Mixer, etc. Connecting the D-911 to the D-984VC, VCA control module permits the volume control of all channels and contact controls.
Features
- 100 mm fader
- Volume control of all channels and contact controls
- 12 fader for input channels
- 8 output volume controls
- 8 LED-illuminated switches
- Remote power control
- Rack mountable
- VCA Control Module (D-984VC) required
Specifications
- Power Source
- 5 V DC (supplied from the optional D-984VC)
- Connector
- RJ45 connector × 8
- Input Fader Control
- Input fader (100 mm) × 12
- Output Volume Control
- Output volume control × 8
- Contact Control
- Illuminated switch × 8
- Remote Output
- No-voltage make contact output (contact capacity: 30 V DC, 4 A)
- Remote Switch
- Seesaw switch for activating the remote function of the power distributor
- Finish
- Panel: Pre-coated steel plate, black, 30 % gloss
- Dimensions
- 482.6 (W) × 177 (H) × 61.3 (D) mm (excluding projection)
- Weight
- 2.7 kg
- Included Accessories
- Fader knob (Red, Yellow)x 3 each, Volume knob (Red) x 2, Rack mounting screw x 4, Rack mounting bracket (preinstalled on the unit) x 2
