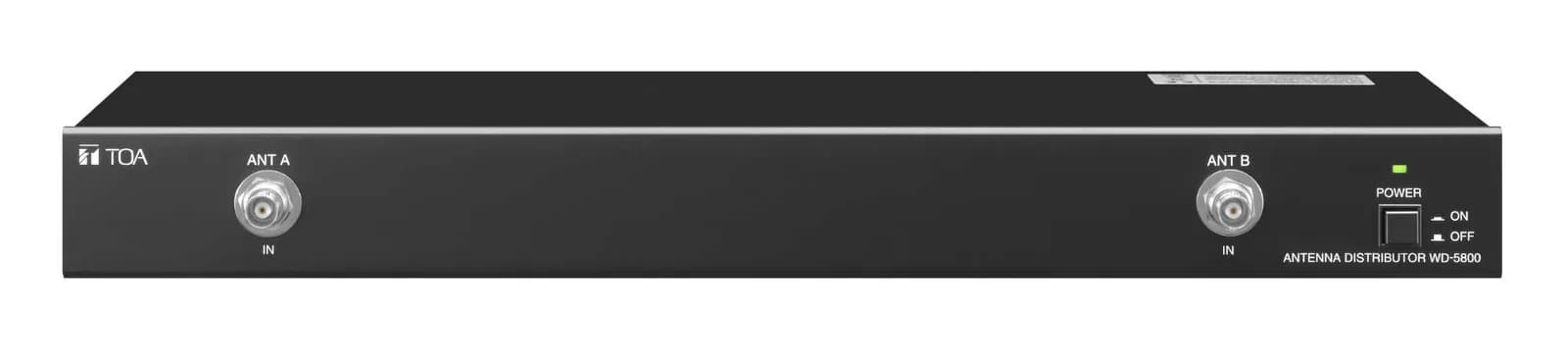

TOA WD-5800 1CE Antenna Distributor
Product Overview
The TOA Wireless Antenna Distributor WD-5800 is designed to be used in conjunction with a VHF/
UHF band system for sound reinforcement applications. It comes with two channels, in which two
input signals are mixed and distributed to four outputs. The WD-5800 also has four DC power
distribution outputs.
Features
- 2 antenna inputs and 4 distributed outputs
- 2 inputs per antenna which are mixed for output (when 2 antenna are set up in a large room)
- Supplies power to antenna
- Compact 19” rack-mount design
Specifications
- Power Source
- AC mains (supplied AC adapter must be used)
- Power Consumption
- 25 W or less
- Current Consumption
- 1.6 A (12–15 V DC)
- Frequency Range
- VHF/UHF
- Indicator
- Power lamp
- Antenna Input
- 2 inputs per distribution channel (front x 1, rear x 1), 75 Ω, BNC (phantom power for antenna)
- Antenna Output
- 4 outputs per distribution channel, 75 Ω, BNC
- DC Power Supply
- 4 outputs (each output: 12 V DC/250 mA) (Output voltage of this unit depends on that of AC adapters.)
- Operating Temperature
- -10 °C to +50 °C (14 °F to 122 °F)
- Operating Humidity
- 30 % to 85 %RH (no condensation)
- Finish
- Panel: Aluminum, black, paint Case: Steel, black, paint
- Dimensions
- 420 (W) x 44 (H) x 214 (D) mm (16.54" x 1.73" x 8.43")
- Weight
- 2 kg (4.41 lb)
- Included Accessories
- AC adapter x 1, Power cord (2 m (6.56 ft) x 1, DC cable x 4, Rubber foot x 4
- Optional Accessories
- Rack mounting bracket: MB-15B
