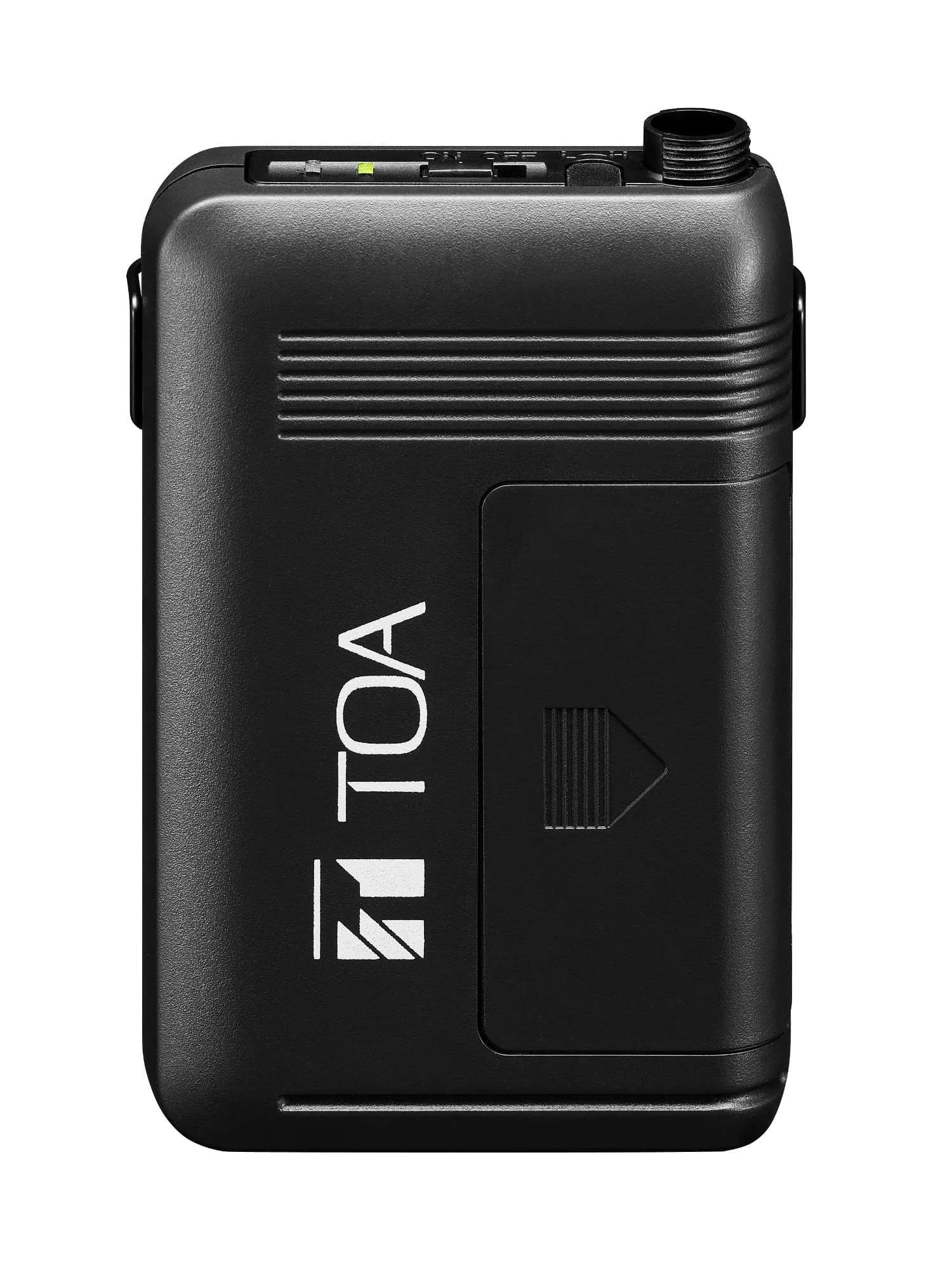

TOA WM-5325 D03 Wireless Transmitter
Product Overview
The WM-5325 wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.
Features
- UHF bodypack transmitter with excellent range
- Compact and ultra-lightweight and can be carried effortlessly over long periods of time
- Equipped with belt clip and a length-adjustable neck strap
- Wide range coverage and long battery durability
- Specially developed for speech applications
Specifications
- Frequency Range
- 830 - 865 MHz, UHF
- Channel Selection
- 64 channels (the number of channels may differ from country to country)
- RF Carrier Power
- Less than 50 mW (Factory preset 10 mW ERP)
- Tone Frequency
- 32.768 kHz
- Maximum Input Level
- -14 dB to -29 dB (Audio level control: Min. to Max.)
- Maximum Deviation
- ±40 kHz
- Audio Frequency Response
- 100 Hz – 15 kHz
- Battery
- WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
- Battery Life
- Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used)
- Indicator
- Power/Battery lamps
- Antenna
- Built-in type
- Connector
- ø3.5 mm (ø0.14") mini plug
- Operating Temperature
- –10°C to +50°C (14°F to 122°F) (except battery)
- Operating Humidity
- 30 % to 85 %RH
- Finish
- Resin, coating
- Dimensions
- 62 (W) x 102.5 (H) x 23 (D) mm (2.44" x 4.04" x 0.91")
- Weight
- 90 g (0.2 lb) (with battery)
- Included Accessories
- Screw driver x 1, Storage case x 1, Neck strap x 1
- Optional Accessories
- Battery charger: BC-5000-2, BC-5000-6, BC-5000-12 Ni-MH battery: WB-2000-2 (containing 2 pieces) Unidirectional lavalie microphone: YP-M5300 Omnidirectional lavalier microphone: YP-M5310 Headset microphone: WH-4000A, WH-4000H
