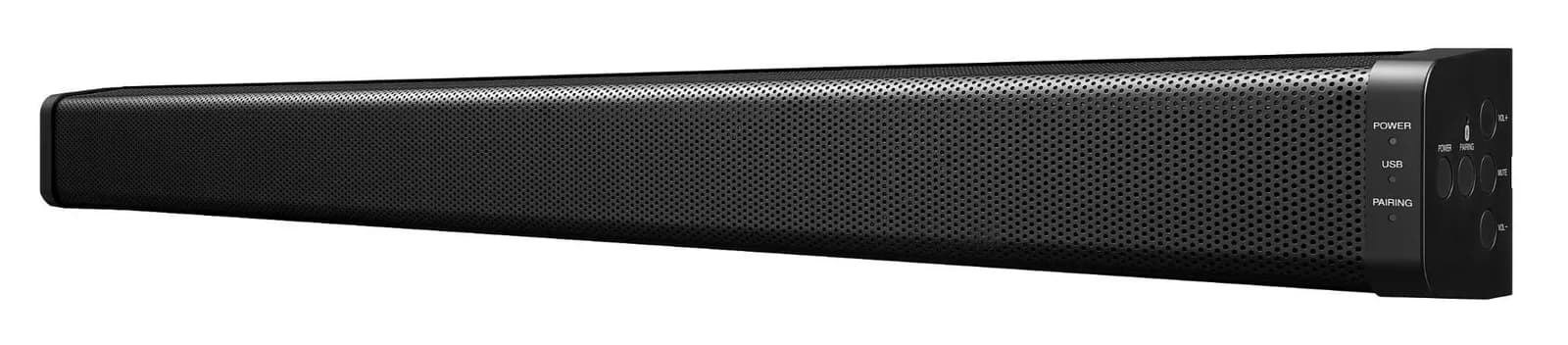

TOA AM-CF1B Integrated Audio Collaboration System
Product Overview
The AM-CF1 is an Audio Collaboration System that will change your perception of web conferences.
Imagine you are in a team conference and everyone gets clearly heard across different locations - no matter how passionately you discuss your ideas. The AM-CF1 with its integrated microphone array and soundbar turns any web conference in a natural conversation - clear as face-to-face.
The integrated array of 8 steerable microphones automatically focuses on whoever is talking in real-time, allowing a natural conversation in web conferences.
Features
- TOA’s original beam forming array microphone technology offers ideal sound recording
- High quality audio supports natural conversation in huddle rooms
- Easily connectable via USB for a PC-based web conference and for USB web-camera
- Bluetooth® interface allows attendees on the public phone line
- LED light tells your voice is now being surely collected and delivered to remote partner
- Built-in DSP function such as Automatic Echo Cancellation and Automatic Noise Reduction
- Wall-mount installation gives more free space
- Black or white colored according to interior design
- Compatible for PoE plus and power supply
Specifications
- Power Source
- 12 V DC (supplied from the specified AC adapter) or 52 V DC (supplied from the specified PoE extender)
- Current Consumption
- 3.5 A or less
- Input
- USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1, 3.0 type-B port Bluetooth: 2 channels (A2DP1.3 (stereo), HPF1.6) Codec: 1 channel, −10 dB*1, 10 kΩ, unbalanced, RCA pin jack AUX: Stereo 1 channel, −10 dB*1, 10 kΩ, unbalanced, RCA pin jack
- Output
- USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1, 3.0 type-B port Bluetooth: 1 channel (HPF1.6) Codec: 1 channel, −10 dB*1, 600 Ω, unbalanced, RCA pin jack AUX: Stereo 1 channel, 4 dB*2, 600 Ω, electronically-balanced, removable terminal block (6 pins) Internal speaker: 2-way (woofer × 2, tweeter × 1) x 2, 10 W x 2
- USB Hub Port
- USB 3.0/USB 2.0/USB 1.1, type-A port
- Control Input
- 2 channels, no-voltage make contact input, open voltage: 12 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins)
- Control Output
- 2 channels, relay contact output, withstand voltage: 30 V DC, control current: max. 300 mA, removable terminal block (6 pins)
- Network I/F
- 10BASE-T/100BASE-TX, RJ-45
- Microphone
- Unidirectional electret condenser microphone
- Frequency Response
- 20 Hz – 20 kHz (AUX IN – AUX OUT)
- User Controls
- Power switch, Bluetooth pairing switch, Mute switch, Volume Up/Down switch
- Indicators
- Power indicator (blue/green/yellow/red), USB connection indicator (green/blue), Bluetooth indicator (blue), Multifunction indicator (green/red)
- Operating Temperature
- 0 – 40˚C (32 – 104˚F)
- Operating Humidity
- 90% RH or less (no condensation)
- Finish
- Body: Aluminum, black (RAL 9005 equivalent), 30% glossy Punched net: Surface-treated steel plate, black (RAL 9005 equivalent), 30% glossy Side cover: ABS resin, black (RAL 9005 equivalent)
- Dimensions
- 800 (w) x 83.2 (h) x 85.8 (d) mm (31.5" x 3.28" x 3.38")
- Weight
- 4.6 kg (10.14 lb)
- Included Accessories
- USB cable (3 m or 9.84 ft) … 1 Removable terminal plug (6 pins) … 2 Wall mounting bracket (preinstalled on the unit) … 1 Hex wrench (M3) …1
