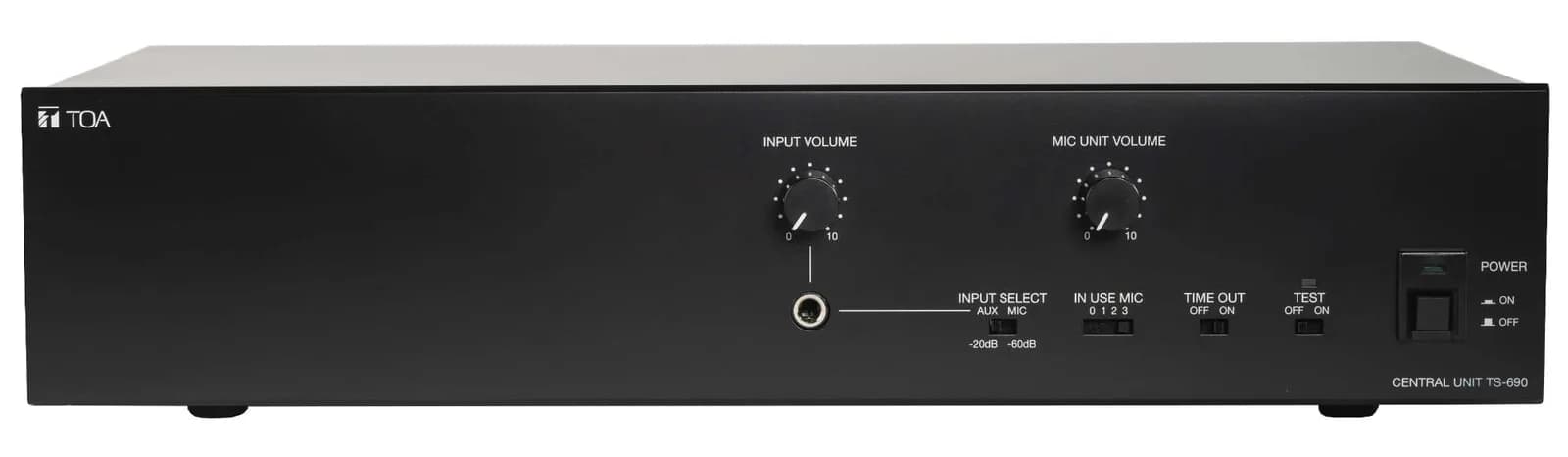

TOA TS-690 Central Unit
Product Overview
The TS-690-AS is a Central unit for TOA Conference system. Use of its line connection terminals permits connections to the conference units of TS-691L-AS, TS-692L-AS making up a conference system. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (2 unit size)
Specifications
- Power Source
- 220 - 240 V AC, 50/60 Hz
- Power Consumption
- 20 W
- Rated Output
- 36 V DC, 480 mA
- Input
- Selectable MIC or AUX Mic: -60dB*, 600 Ω, unbalanced, phone jack AUX: -20 dB*, 10k Ω, unbalanced, phone jack
- Output
- Recording: -20dB*, 10k Ω, unbalanced, RCA jack
- Control
- Priority speech chime: Operation of TS-691L-AS prority button activates a single-tone chime Speaker restriction: No. of simultaneous-usable TS-692L-AS can be set to 0 - 3 Automatic Mic-off function: Off, 30 sec. (selectable)
- Number of Connectable Conference Units
- Max. 24 units
- Finish
- Panel: Aluminum, black, 30% gloss, paint Case: Steel plate, black, 30% gloss, paint
- Dimensions
- 420(W) x 96.1 (H) x 222.5(D) mm
- Weight
- 2.7 kg
- Optional Accessories
- Power Cord (2m) x 1
