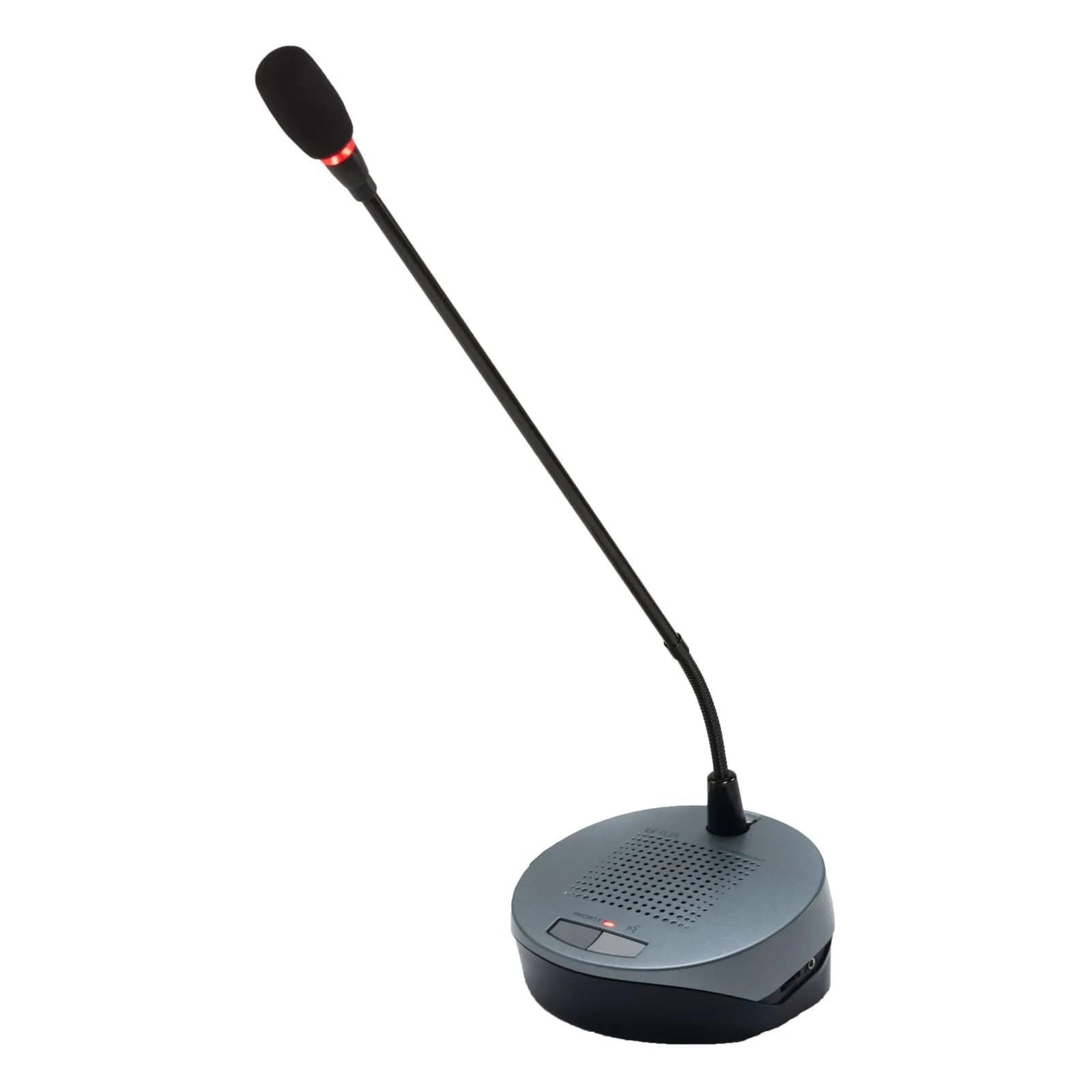

TOA TS-691L-AS Chairman Unit with Long Microphone
Product Overview
The TS-691L-AS is a Chairman unit for TOA Conference system, of which compact and lightweight design makes it easy to install and store. Placing the speech button in the ON position allows a chairman to speak and disables the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing the voices from delegate units (TS-692L-AS) to be monitored. By pressing the priority button, the chairman unit can take precedence over any delegate units. The TS-691L-AS chairman unit come with a long microphone as standard accessory.
Specifications
- Power Source
- 36 V DC, 30 mA or less (supplied from the Central Unit TS-690)
- Output
- Headphone/Recording: Ø 3.5 mm, mini jack (3P: monaural) Internal speaker: 130 Ω, 200 mW
- Control
- Speech: Microphone, speaker on-off control by speech button Priority: Microphone, speaker on-off, other microphone cut-off, and single-tone chime activation by priority button Volume control: Headphone/Recording and internal speaker volume adjustable
- Microphone Unit (Accessory)
- Electret Condenser Microphone Directivity: Unidirectional Impedance: 1.8kΩ Sensitivity: -37dB (1kHz 0dB = 1V/Pa) Frequency Response: 100Hz - 13 kHz Length: 518 mm Weight: 105g (0.23 lb)
- Operating Temperature
- 0 °C to +40 °C (32 °F to 104 °F)
- Operating Humidity
- 90 %RH or less (no condensation)
- Finish
- Upper case: ABS resin, metallic grey, paint Lower case: ABS resin, black
- Dimensions
- 145.3 (W) × 70.7 (H) × 150.5 (D) mm (5.72" × 2.78" × 5.93") (Excluding Microphone Unit)
- Weight
- 800 g (1.76 lb) (Excluding Microphone Unit)
- Included Accessories
- Long Microphone Unit x 1
- Optional Accessories
- Extension cord: YR-780-2M, YR-780-10M
