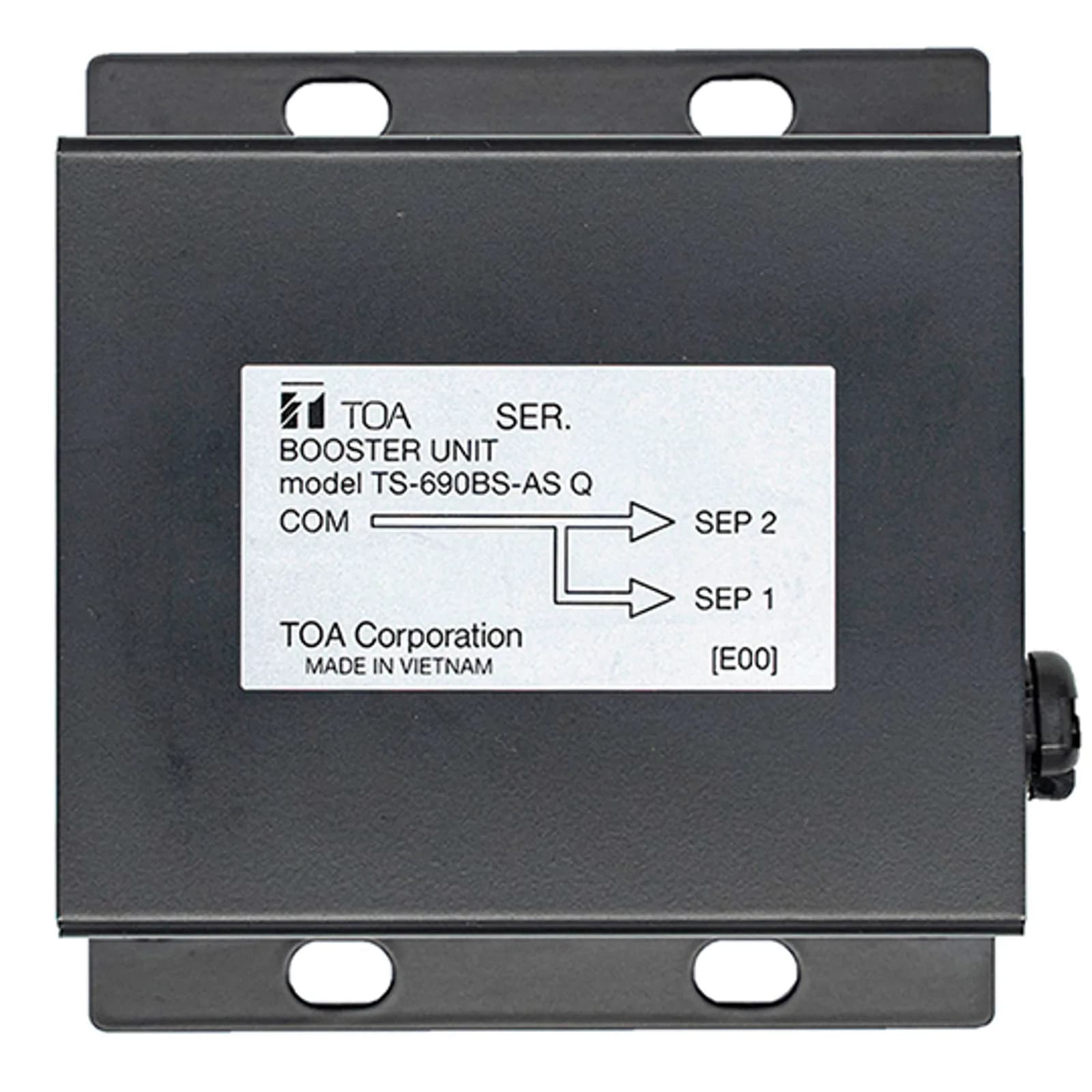

TOA TS-690BS-AS Booster Unit
Product Overview
The TS-690BS is a booster unit used to connect between TS-690 series conference system's central unit and conference units (TS-691L and TS-692L).
Specifications
- Power Source
- 36V DC (supplied from the Central Unit TS-690)
- Current Consumption
- Max. 10 mA
- Connection Terminal
- Connect to Central unit: Cable length 2m with 8 pin DIN plug Connect to Conference units: 8 pins DIN socket x 2
- LED Indicator
- Power status indicator
- Number of Connectable Conference Units
- Max. 30 units
- Operating Temperature
- 0 ゜C to +40゜C(32 ゜F to 104 ゜F)
- Operating Humidity
- 90 %RH or less (no condensation)
- Finish
- Steel plate, black, 30% gloss, paint
- Dimensions
- 90 (W) x 37 (H) x 97.5 (D) mm
- Weight
- 450 g (1 lb)
