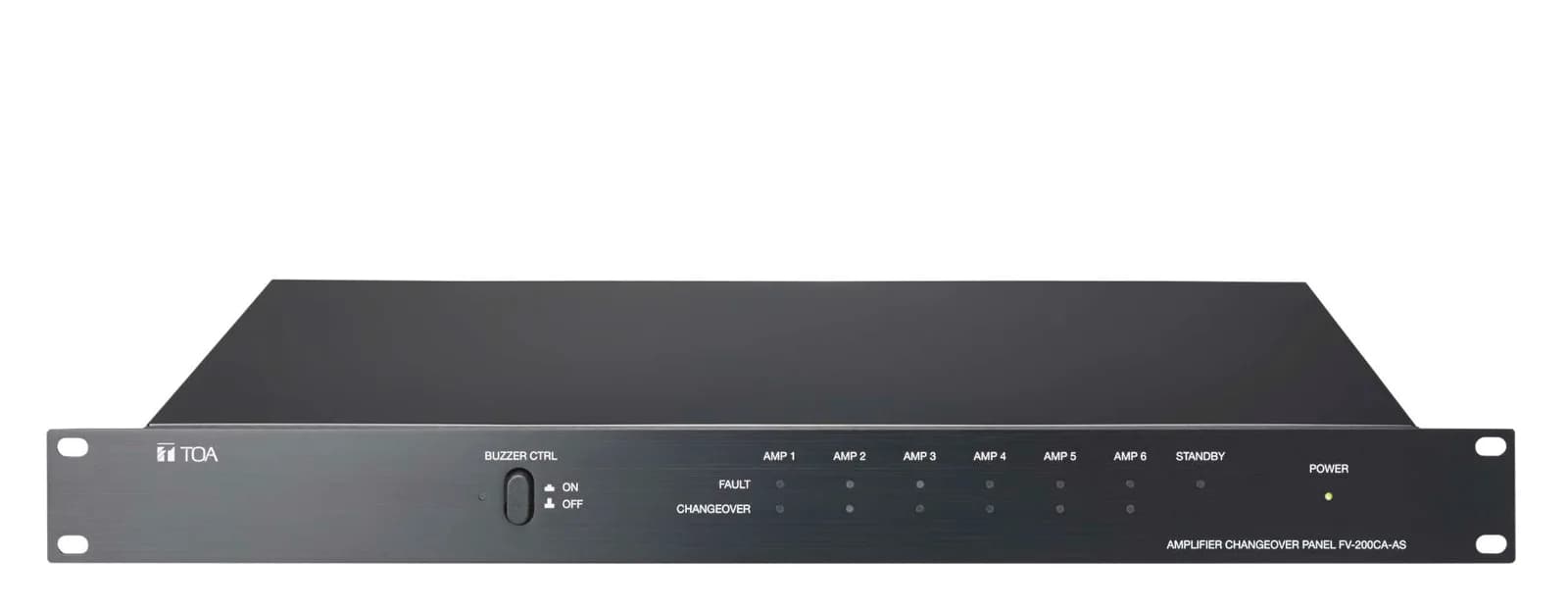

TOA FV-200CA Amplifier Changeover Panel
Product Overview
The FV-200CA Amplifier Changeover Panel is used to automatically changeover FV-200 Series fault duty amplifier to working standby amplifier. 1 unit of FV-200CA can handle up to 6 nos. of FV-200 Series amplifiers.
Specifications
- Power Source
- 24 V DC (operating range: 21.6 - 26.4 V), M3 screw terminal
- Current Consumption on 24 V DC Power Input
- 240 mA
- Number of Input Channel
- 6 Duty Amplifier, 1 Standby Amplifier
- Number of Output Channel
- 6 Output
- Failure Detection
- Fault Buzzer with buzzer control switch
- LED Indicator
- Power (Green), Changover (Orange), Fault / Buzzer Control (Red)
- Operating Temperature
- 0 °C to +40 °C
- Operating Humidity
- Under 90% RH (no condensation)
- Finish
- Front Panel : Aluminum, black, alumite
- Dimensions
- 482 (W) × 44 (H) × 343.8 (D) mm
- Weight
- 2.6 kg
- Included Accessories
- Removable terminal plug (2 pins) x 3, removable terminal plug (8 pins) x 4
