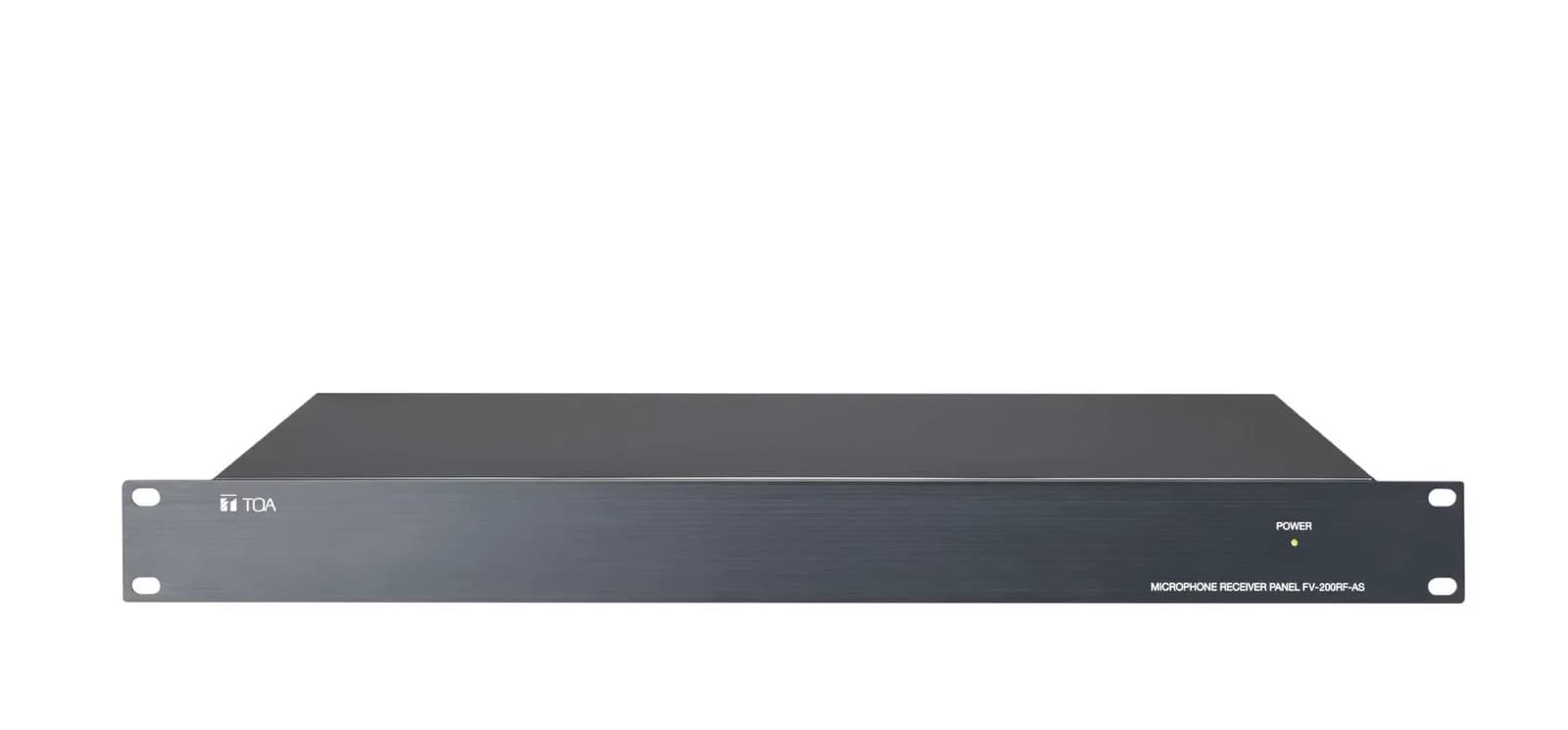

TOA FV-200RF Microphone Receiver Panel
Product Overview
The FV-200RF Microphone Receiver Panel is used to connect the RM-200M Remote Microphone to the FV-200 Series Emergency Public Address System. Up to 4 RM-200M can be connected.
Specifications
- Power Source
- Usable Power Supply Unit: FV-200PS 24 V DC (operating range: 19.5 - 27 V), M3 screw terminal
- Current Consumption
- 230 mA
- Number of Zone Groups in Speaker Selector
- Max. 10 (SS-2010, SS-1010R, SS-1010)
- Priority Control for Remote Microphone
- Last-in-1st-out priority / 1st-in-1st-out priority / individual priority / selectable
- Distortion
- Under 1% (1 kHz, rated output)
- Signal to Noise Ratio
- Over 60 dB
- Chime
- Ascending 4-note tone
- Control Output
- SS Control : 55 outputs, open collector output, removable terminal block (6 pins)
- Control Input
- All call :1 input,No-voltage make contact input,open voltage 24V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins)
- Indicator
- Power (Green), Error (Red)
- Operating Temperature
- 0 °C to +40 °C
- Operating Humidity
- Under 90% RH (no condensation)
- Finish
- Front Panel : Aluminum, black, alumite
- Dimensions
- 482 (W) × 44 (H) × 320 (D) mm
- Weight
- 2.8 kg
- Included Accessories
- Removable terminal plug (2 pins) x 2, removable terminal plug (3 pins) x 1, removable terminal plug (6 pins) x 10, Instruction Manual x 1
