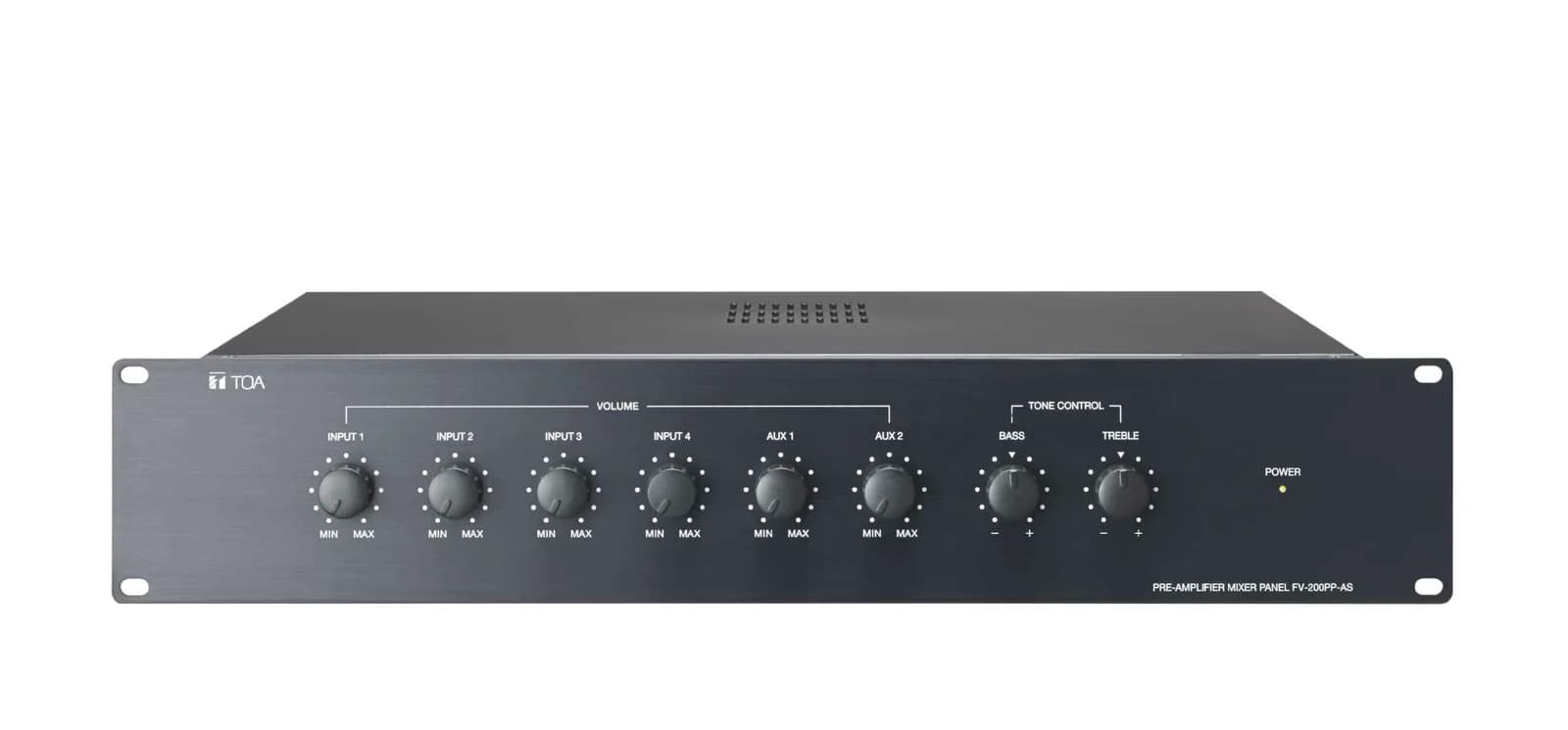

TOA FV-200PP Pre-Amplifier Mixer Panel
Product Overview
The FV-200PP Pre-Amplifier Mixer Panel is the basic operation section of the FV-200 Series Emergency Public Address System
Specifications
- Power Source
- Usable power supply unit : FV-200PS 24 V DC (operating range : 19.5 - 27 V), M3 screw terminal
- Current Consumption
- 110 mA
- Frequency Response
- 50 Hz - 15 kHz, ±3 dB, 1 kHz
- Distortion
- Under 1% (1 kHz, rated output)
- Tone Control
- Bass : -10 dB at 100 Hz, +10 dB at 100 Hz (for INPUT BGM) Treble : -10 dB at 10 kHz, +10 dB at 10 kHz (for INPUT BGM)
- Signal to Noise Ratio
- Over 60 dB
- Audio Input
- EV : -20 dB*, 600 Ω, unbalanced, removable terminal block (2 pins) Timer : -20 dB*, 600 Ω,unbalanced,removable terminal block (2 pins) Paging : -60/-20 dB* (selectable), 600 Ω, balanced, removable terminal block (3 pins) RF Link : 0 dB*, 600 Ω,unbalanced,removable terminal block (2 pins) MIC/LINE 1 - 4 : -60/-20 dB* (selectable), 600 Ω, balanced, removable terminal block (3 pins) AUX 1 - 2 : -20 dB*,10 kΩ, unbalanced, RCA Jack
- Audio Output
- Priority output : 0 dB*, balanced, removable terminal block (3 pins) BGM output : 0 dB*, balanced, Removable terminal block (3 pins)
- Phantom Power
- MIC/LINE 1 (selectable) (+21 V DC)
- Control Input
- Timer : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins) Paging : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins) EV : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins)
- Control Output
- All Call : Contact Switch (Normally Open), removable terminal block (2 pins)
- Muting
- MIC/LINE 1 : Mutes other input signals (Mic/Line 2 - 4, AUX 1 - 2) by 0 - 30 dB attenuation
- LED Indicator
- Power (Green)
- Operating Temperature
- 0 °C +40 °C
- Operating Humidity
- Under 90% RH (no condensation)
- Finish
- Front Panel : Aluminum, black, alumite
- Dimensions
- 482 (W) X 88.4 (H) X 353.3 (D) mm
- Weight
- 4.2 kg
- Included Accessories
- Removable terminal plug (2 pins) x 7, removable terminal plug (3 pins) x 8, Instruction Manual x 1
