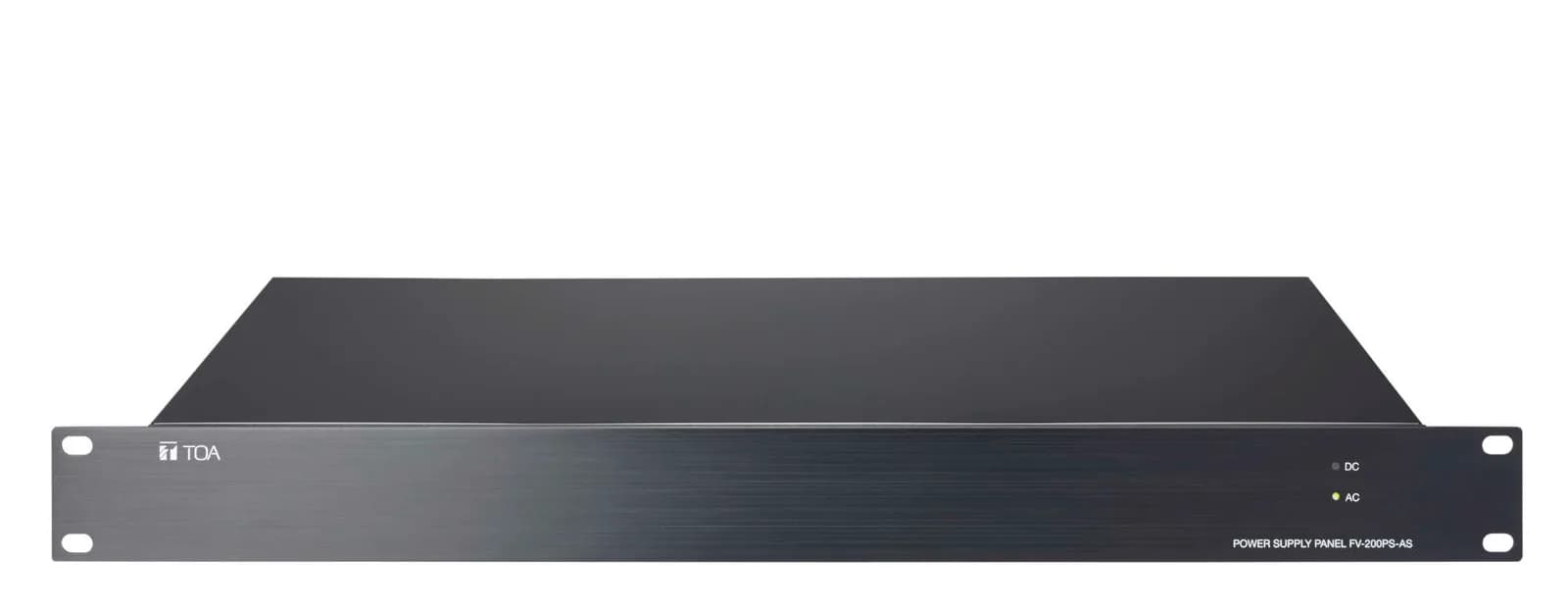

TOA FV-200PS Power Supply Panel
Product Overview
The FV-200PS Switching DC Power Supply Panel supplies 24V DC power to each component of FV-200 Series Voice Evacuation System. In additional, the DC power supply shall connect to an emergency power supply for uninterrupted DC power during AC power failure.
Specifications
- Power Source
- 220 - 230 V AC, 50/60 Hz 24 V DC (operating range: 19.5 - 27 V), M3 screw terminal
- Power Consumption
- 160 W (275 VA) at rated power output (230 V AC operation)
- Output
- AC Operation : 24 V DC ±1, 5A (total) DC Operation : Voltage lowering DC input voltage approx. by 2 V, M4 screw terminal
- Indicator
- AC Power (Green), AC Power (Orange)
- Operating Temperature
- 0 °C to +40 °C
- Operating Humidity
- Under 90% RH (no condensation)
- Finish
- Front Panel : Aluminum, black, alumite
- Dimensions
- 482 (W) × 44 (H) × 335 (D) mm
- Weight
- 3.2 kg
- Included Accessories
- Power cable (YA-301 or YA-313)
